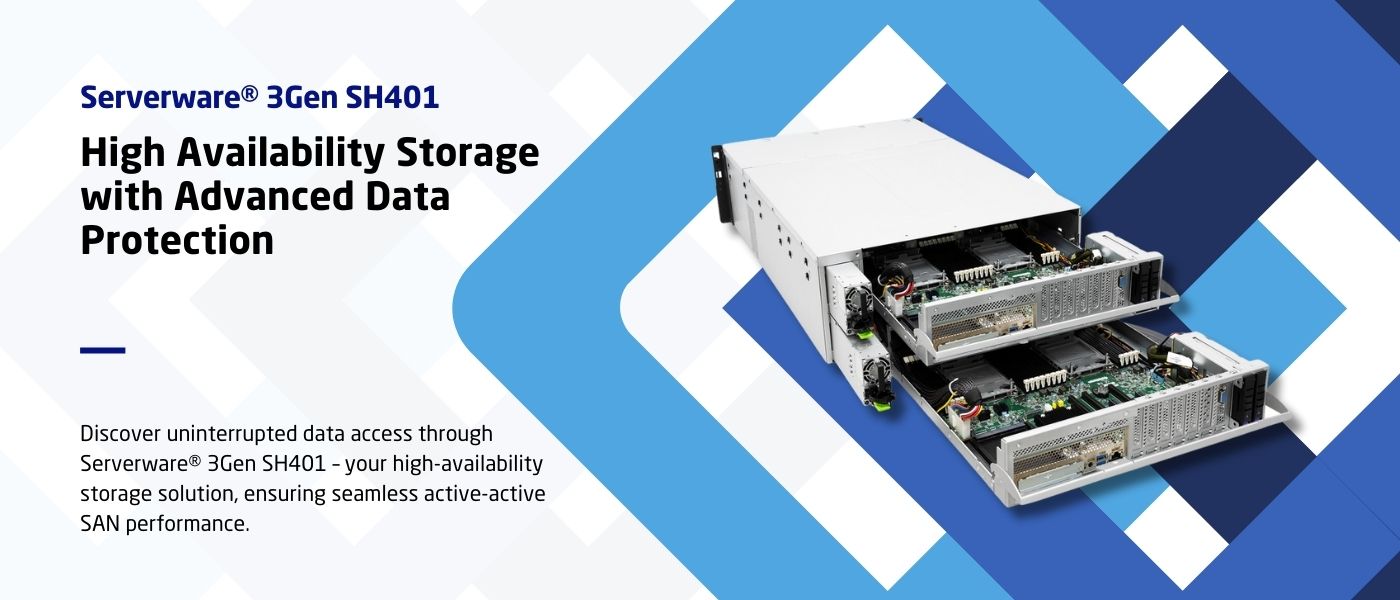

Serverware® 3GEN 4U Active-Active SAN System

ServerWare® 3GEN 4U Active-Active SAN System, the ultimate solution for high-performance storage consolidation and maximum availability. With dual redundant controllers and hot-swappable hardware, this system ensures seamless operations and unparalleled reliability, allowing you to meet the diverse needs of your business applications effortlessly.

One Unified Storage.
The Power of Next Generation Technology

With a unified storage platform supporting simultaneous block and file services, the ServerWare® 3GEN SAN System is the ideal solution for primary and secondary storage needs. Embrace the ServerWare® 3GEN SAN System today and experience the power of next-generation storage technology!

Storage Flexibility. A Unified Storage Platform supporting concurrent block and file services.

Supporting major operating systems including Windows, UNIX, Linux, MacOS, and VMware, the ServerWare® 3GEN SAN System supports a wide range of protocols such as iSCSI, CIFS, NFS, HTTP, FTP, SMB, AD, LDAP, NIS, HDFS, and S3/Openstack, making it versatile and adaptable to your environment.

The built-in 2x 10GbE SFP+ ports per controller ensure lightning-fast data transfers, while up to 512GB ECC memory per controller guarantees optimal performance.

Key Highlights

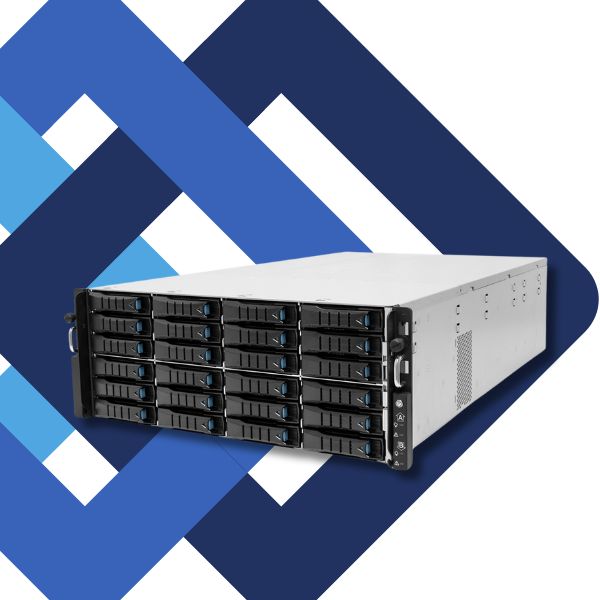

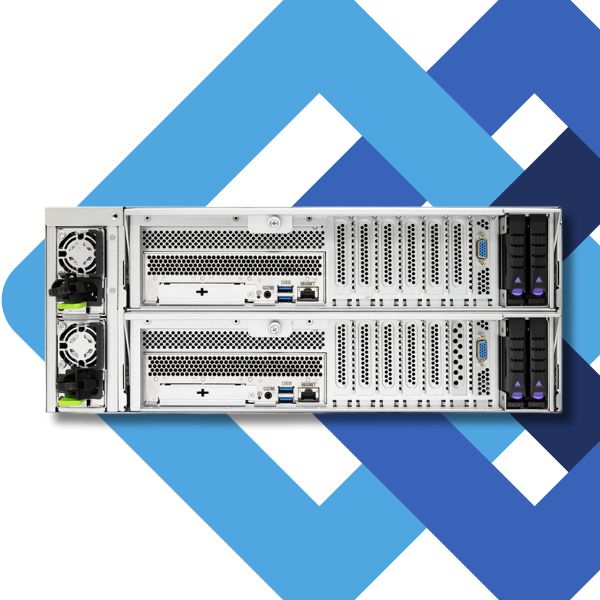

4U 24-bay Dual Redundant Active-Active Controller
Redundant and hot swappable hardware controller to achieve high performamce and maximum availability.

Storage Consolidation that can simultaneously meet your diverse needs – SAN and NAS, primary and secondary storage.
A unified storage platform supporting simultaneous block and file services for business and technical applications.

SW-3Gen Local and Network RAID with the most powerful RAID engine.

INTEL XEON Scalable CPUs with speedy DPP RAID rebuild more than 5TB per hour.

Upgradeable to 12 16Gb FC ports & 10/25/100GbE ports
Standard with 12Gb SAS & Dual GbE ports.

Value-added applications available for cloud computing, productivity and data availability.
Dynamic thin provisioning, block level data de-duplication, real-time Volume based encryption, WORM (Write Once Read Many), performance enhancing SSD and N+1 clustering to protect sensitive and mission critical data.

Performance for the most demanding applications.
Oustanding file-based and transaction based performance with high bandwidth, 64-bit architecture, and the lastest I/O technologies.

Storage Gateway option supports up to 1000 storage nodes.
Buy what you need today and grow when you need it in the future.

Multi-node support for maximum performance and failover protection.
Unlimited scalability on computing power and storage capacity.

Speedy Natural Disaster Recovery via Global Clustering and Remote Volume Mirroring.
Mirror critical data to local and remote locations via FC and iSCSI.

3GEN High Availability vs. Dual Controller

ServerWare® 3GEN HA(active-to-active)

Clustering for hardware Failure
2 or more controllers
2 or more copies of data

Dual Controller

Clustering for hardware failure protection
Only 1 copy of data Hard Disk failure is 3X higher than controller failure

ServerWare® 3GEN Architecture & Features

Unified Storage	High Availability Solution	Performance Caching
All Storage in One! NAS, iSCSI, FC and FCoE SATA, SAS, SSD Storage Gateway	Fault Tolerance Solution Active Active Clustering Synchronous & Asynchronous Mirroring Scale out to 256 Nodes	Best of Breed Performance! Proprietary Caching Algorithm SSD and Mirroring Cache All Flash Storage Auto-Tierring
Storage Virtualization	Remote Data Replication	Snapshot and Clone
Power of Virtualization Support heterogeneous Storage Network RAID 0 , 1 , 5 , 6 Gateway Pass-through Support	File and Block based Mirroring File based data replication Block based replication via synchronous and asynchronous mode	Data Protection Point-in-time data recovery Extra copies for DR Emergency data retrieval
Dynamic Thin Provisioning	Data De-duplication	Other Solutions
Just in time data space management Dynamic allocation – use it when you need it No garbage scheduling	Optimize space usage Block based Inline de-duplication File based post processing de-duplication	Commercial Strength vServer WORM NAS AES 256 Encryption Auto-Tiering Compression

High Value with unbeatable ROI

Today’s business environment demands innovation and increasing flawless execution in all environments including virtualized computing. With SW-3Gen SH401 series SAN system, you have an ultimate all-in-one storage for handling block based storage, file serving, server consolidation, backup and restoration strategies, replication solutions, regulatory compliance data retention and the integration of NAS and SAN investments.

Packed with enterprise features and protected with a 3 year warranty, SW-3Gen SH401 series delivers unsurpassed value with a price that is lower than all other storage solutions on the market.

High Availability and Advanced Data Protection

All systems include hot swap technology and block level volume cloning software for maximum data protection. By connecting with another SH401 remotely via Gigabit Ethernet ports, backup and restore can be accomplished via our automated file based asynchronous remote mirroring and synchronous/asynchronous block based volume mirroring.

SH401 incorporates SnapBack technology to reduce backup time to minutes; SnapQuick to enable recovery of point-in-time data in minutes. Furthermore, a full suite of optional enterprise software such as Global multi-node clustering (active-active and active-passive), WORM, real time volume encryption, dynamic thin provisiong and block based data de-duplication with projected 70% capacity saving.

Storage Sharing and Access Control

With versatile SW-3Gen SH401 series systems, you can use high performance SAS or large capacity SATA disk drives for optimal performance-cost ratio. On the same system, you can seamlessly consolidate block and file storage. SW-3Gen SH401 series makes this possible by providing native support of the iSCSI, FC, NFS and CIFS storage protocols.

ServerWare® 3GEN 4U SH401 Specifications

System Configuration
Processor & OS	INTEL XEON Scalable & SW-3GenOS 64-bit
Memory	Up to 512GB ECC memory per controller
Power Supply Unit	800W 80PLUS Platinum Redundant PSU
Chassis Form Factor	4U
Hotswappable Drive Bays	24-bay Support 3.5″ & 2.5″ SAS, NL-SAS, SED HDDs Support 2.5″ SAS/SATA SSD 1,000 Max Drives Supported with addiitonal JBOD enclosures
Host Connectivity
10/100/1000 Ethernet Ports	2 Auto-sensing port per controller for Management
Heartbeat Connection	via Built-in 2x 10GbE SFP+ ports per controller
Latest 10G iSCSI & 16Gb FC	<Depending on user’s selection>
NIC Teaming with LACP	Yes
Load Balancing	Yes
Ethernet Failover	Yes
Interoperability	Windows, UNIX, Linux, MacOS, VMware
Interface Support	iSCSI, CIFS, NFS, HTTP, FTP, SMB, AD, LDAP, NIS, HDFS, and S3/Openstack
Data Protection and Reliability
System Controller	Hot Swappable
Clustering	Active-Active
Hot Swap HDD	True Hot Swap
RAID	Local & Network RAID 0, 1, 5, 6, 10, 50, 60
Volume Expansion/Contraction	Yes
SnapBack/SnapQuick	Yes
Volume Cloning	Yes
Redundant Fans/PSU	Hot Swappable
3Gen Flash Caching	Optional
3Gen Automated Storage Tiering	Optional
Storage Gateway	Optional (up to 1000 storage nodes & HA up to 5 nodes failure)
File-based Data De-Duplication	Optional
Block based Data De-Duplication	Optional
Dynamic Thin Provisioning	Optional
Data Mirroring	Optional
Redundant OS	Optional
Performance SSD Caching	Optional
FileLock (WORM NAS)	Optional
Real Time Volume Encryption	Optional
Management
Remote Management	Yes, via intuitive Web UI, secured web (HTTPS)
Active Directory Services	Yes
Network Discovery Tool	Yes
