Processor / System Bus
|
2 x Socket P (LGA 3647)
1st and 2nd Gen Xeon® Scalable Processor Family
|
|
Core Logic
|
Intel® Lewisburg PCH C621
|
|
Memory
|
Total Slots : 24 (6-channel per CPU, 12 DIMM per CPU)
Capacity : Maximum up to 3072GB RDIMM
Memory Type :
DDR4 2933/2666/2400 /2133 RDIMM
DDR4 2933/2666/2400 /2133 LRDIMM
DDR4 2933/2666/2400 /2133 LR-DIMM 3DS
DDR4 Intel® Optane™ DC Persistent Memory
Memory Size :
64GB, 32GB, 16GB RDIMM
128GB, 64GB, 32GB LRDIMM
128GB, 64GB LR-DIMM 3DS
|
|

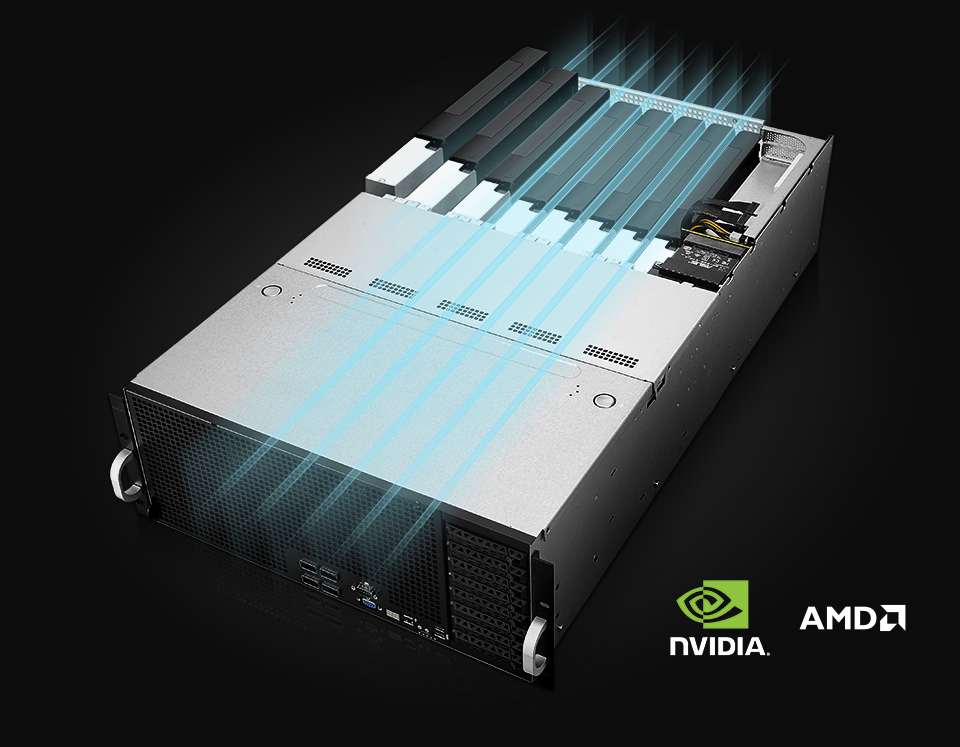

Expansion Slots
|
Full-length/Full-height:
8 x PCI-E x16 (Gen3 x16 link), FH, FL

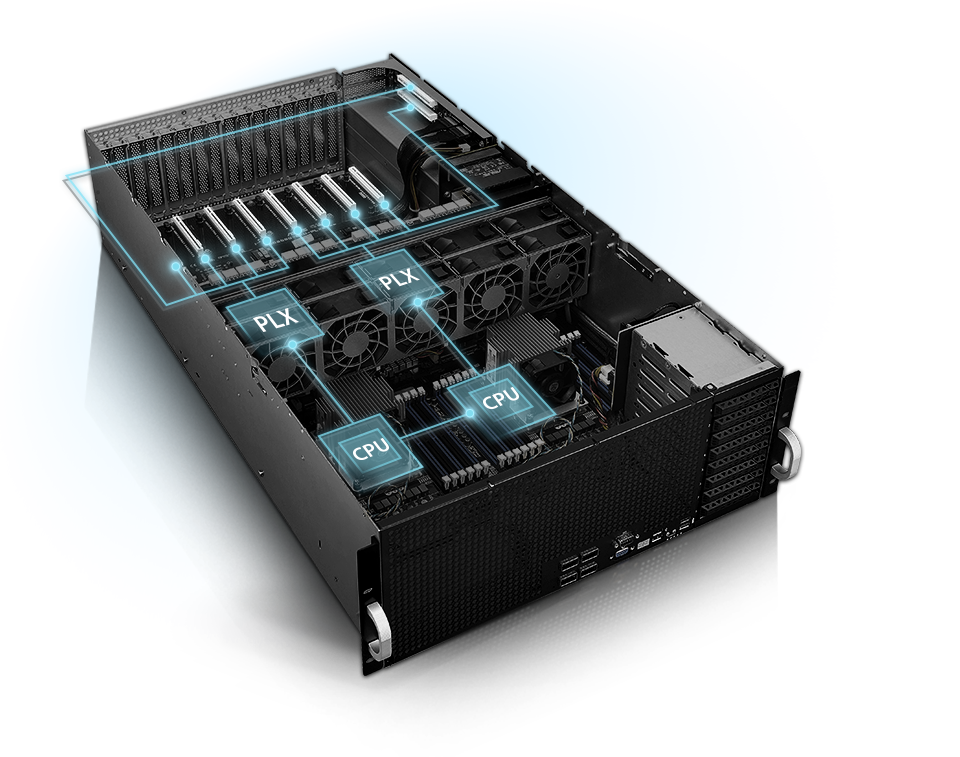

* Single root topology : 8 from CPU1
Dual root topology : 4 from CPU1, 4 from CPU2
Half-length/Low-profile:
Rear:
Dual root topology: 2 x PCI-E x16 (Gen3 x 16 link),LP,HL
(1 from CPU1,1 from CPU2)
or
Single root topology: 1 X PCI-E x16 (Gen3 x16 link),LP,HL
(from CPU1)
Front:
1 x PCI-E x8 (Gen3 x8 link),LP,HL (from CPU2) |
|
Storage
|
SATA Controller :
Intel® C621
8 x SATA3 6Gb/s ports + 2 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link 22110/2280/2260)
6 x SATA3 6Gb/s ports + 2 x NVMe drives + 2 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link 22110/2280/2260)
Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1, 5, 10 )
Intel®VROC (For Linux/Windows)
(Support Software RAID 0/1 )
|
|
HDD Bays
|
8 x Hot-swap 2.5″ Storage Bays
(Storage bay 1 & 2 support NVMe/SATA/SAS* drives, Storage bay 3~8 support SATA/SAS* drives. Storage bay location numbers are from top to bottom.
|
|
Networking
|
1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN
|
|
Graphic
|
Aspeed AST2500 with 64MB VRAM |
|
Front I/O Ports
|
2 x USB 3.0 ports
2 x USB 2.0 ports
1 x VGA port
1 x COM port
|
|
Rear I/O Ports
|
2 x RJ-45 GbE LAN ports
1 x RJ-45 Mgmt LAN port
|
|
Switch/LED
|
Front Switch/LED:
1 x Q-Code/Port 80 LED
1 x Power switch/LED
1 x Location switch/LED
1 x HDD Access LED
1 x Message LED
Front Switch/LED:
1 x Q-Code/Port 80 LED
1 x Power switch/LED
1 x Location switch/LED
1 x HDD Access LED
1 x Message LED
2 x LAN LED
|
|
Management Solution
|
On-Board ASMB9-iKVM for KVM-over-IP
|
|
Regulatory Compliance
|
BSMI, CE, FCC(Class A) |
|
Dimensions
|
798mm x 439mm x 175.6mm (4U)
31.42″ x 17.22″ x 6.92
|
|
Form Factor
|
4U
|
|
Power Supply Unit
|
2+1 Redundant 1600W 80PLUS Platinum Power Supply;
100-127 / 200-240Vac, 12.9 / 9.5A（for each
inlet）, 47-63Hz, Class I
2+1 Redundant 2200W 80PLUS Platinum Power Supply
Rating: 100-127/200-240 Vac, 12.9/9.5 A (for each inlet), 47-63 Hz, Class I
*2200W Power supply is only available for selected countries.
|
|
Operating Environment
|
Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
|
|
Warranty
|
Standard 3 Years Warranty
|
