Servers Optimized for Maximum Capacity or Highest Throughput Performance

Serverware® offers a comprehensive portfolio of all-flash NVMe Server and Storage systems that support the latest Intel® Xeon® Scalable processors. The portfolio provides three fundamental design choices for customers,

  • Throughput/IOPS optimized (e.g. 1U 10 NVMe)
  • Balanced Throughput and Capacity (e.g. 2U 24 NVMe)
  • Capacity Optimized (e.g. 2U 48 NVMe)

The all-flash NVMe servers and storage systems deliver a massive improvement in storage performance over systems based on traditional hard disk drives (HDD) and solid state drives (SSD) using legacy storage interfaces including SAS3 and SATA3. The new servers are also more power efficient than the traditional systems and have hot-plug capability for improved serviceability and availability.

Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

Memory

Up to 32 DIMM slots, up to 8TB 5600MT/s ECC DDR5
Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

Form Factor

1U and 2U Rackmount
Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

Power

Platinum and Titanium Level (96%) Efficiency
Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

Management

Open Industry Standard IPMI, Redfish APIs, Rack Scale Management

Storage Enclosures Available for Easy Capacity Expansion

All-flash NVMe storage enclosures bring additional flexibility and capacity expansion to enable advanced deployment scenarios. For example, deploy all NVMe enclosures with Serverware® 2U 4-node and NVMe over Fabric capable NICs to create extremely high performance composable infrastructures
Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

Processors

Dual or single Intel® Xeon® Scalable processor up to 360W TDP
Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

Drives

Up to 48x 2.5″ NVMe/SAS3/SATA3 drives
Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

Input/Output

Up to 3 PCI-E expansion slots with flexible on-board AIOM networking options
NVIDIA® Quadro®, Tesla®, ServerWare® is SuperMicro® distributor, Asus® Server Distributor, Intel®, supermicro®,

Services

Nationwide Services

Mission Critical All-Flash Solutions for Dual-Port NVMe SSDs

Optimized for mission-critical, enterprise-level storage applications, Serverware® innovative SBB (Storage Bridge Bay) features a fully redundant, fault-tolerant “Cluster-in-a-box” system. The Super SBB is designed for dual-port NVMe/SAS drives and provides hot-swappable canisters for all active components. With heartbeat and data connection between the redundant nodes via the midplane, if one node fails, the standby node takes over and gain access to all drives (both controllers can also work as active-active mode), and keeps the system up and running. Storage management software is the key to enable this feature,

All-Flash NVMe Highest Performing Storage Solutions for Advanced Computing

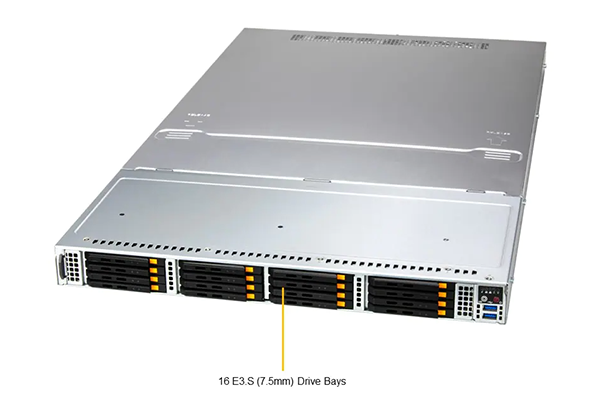

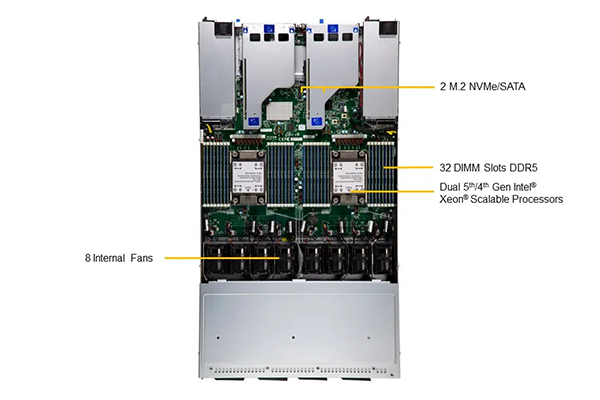

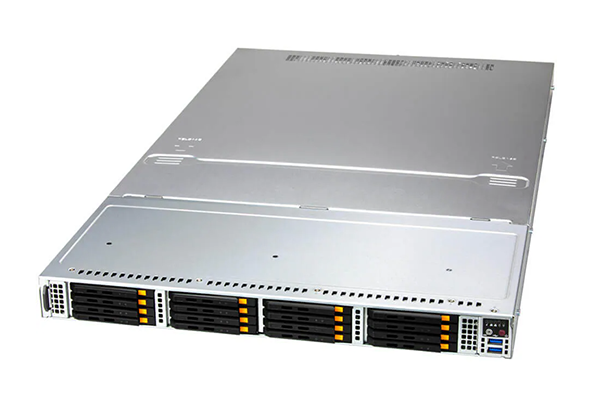

Supermicro SSG-121E-NE316R All Flash Storage Server

ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

2-CPU

ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

32 DIMMS

ServerWare® Server versatile and affordable

AIOM

ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

16-Drives

Intel®, AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

RPS 1+1

Intel®, AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

NVME

SSG-121E-NE316R All Flash Server Specification

System Specifications

DESCRIPTION

SPECIFICATIONS

Form Factor (LxWxH)

1U Rackmount
773.25mm x 438.4mm x 43.6mm

MB Size (WxL)

43.18cm x 34.65cm

Processor

Dual Socket E (LGA-4677) 5th/4th Generation Intel® Xeon® Scalable processors. Up to 270W TDP.

Chipset

Intel® C741

Memory



Memory Capacity

32 DIMM slots

Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM
Memory Type

5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4400MT/s (2DPC)

Drive Bay
Hot-swap

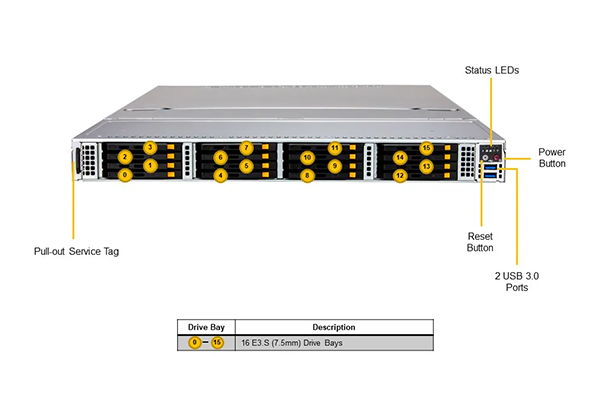

Default: Total 16 bay(s)

16 front hot-swap E3.S 1T NVMe drive bay(s)
M.2

2 M.2 NVMe/SATA slot(s) (M-key 2280/22110)

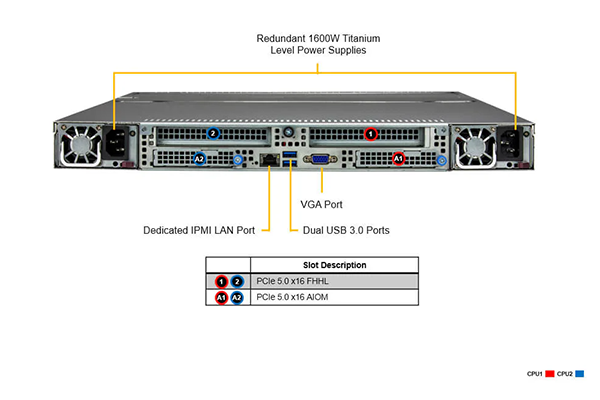

PCIe Expansion Slot
  • Default
    • 2 PCIe 5.0 x16 FHHL slot(s)
    • 2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

PCI Interface

PCI Express* 5.0

Network Conectivity

Via AIOM

1 RJ45 1 GbE Dedicated IPMI LAN port(s)

IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Integrated Graphics

ASPEED AST2600 BMC

Front I/O
Buttons
  • Power On/Off button
LEDs
  • Network activity
  • Power status
  • SSD activity
  • System information (overheat/UID)

Power Supply Unit

1600W Redundant Power Supplies
Titanium Level (96%)

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C ~ 35°C (50°F ~ 95°F)

  • Non-operating Temperature:

       -40°C to 60°C (-40°F to 140°F)

  • Operating Relative Humidity:

       8% to 90% (non-condensing)

  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)

Warranty

Standard 3 Years Warranty
The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

3 years On-Site 24 x7
3 Years Product Warranty
Advance Parts Replacement
4 hours Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

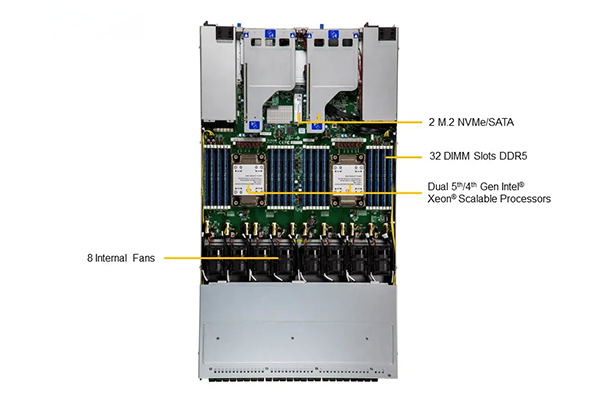

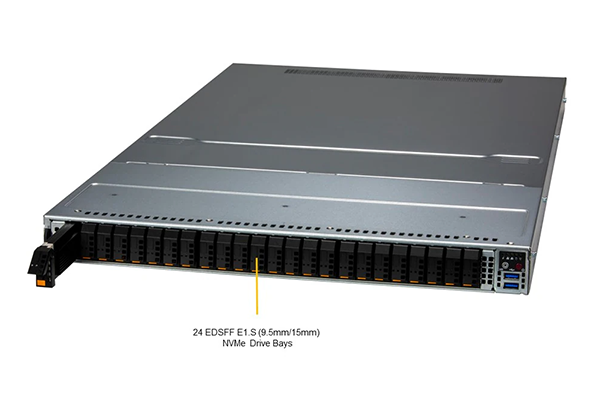

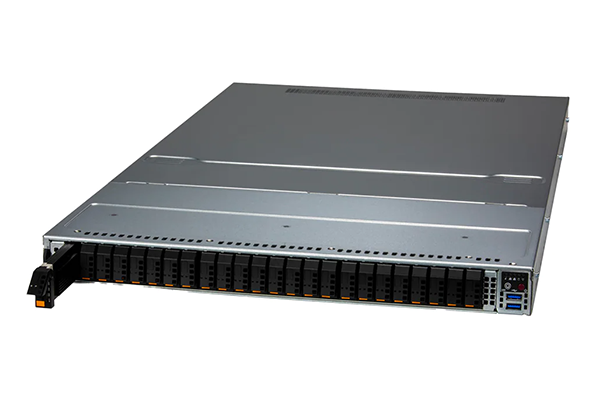

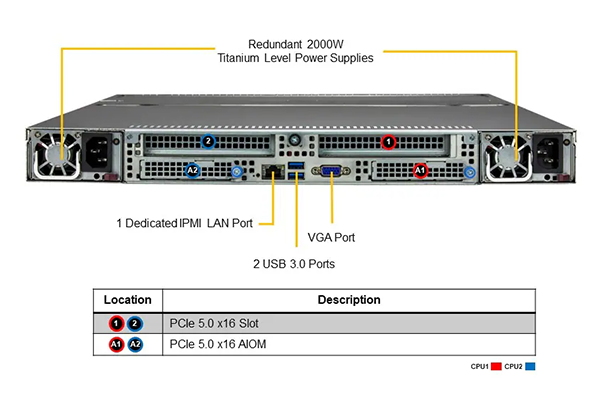

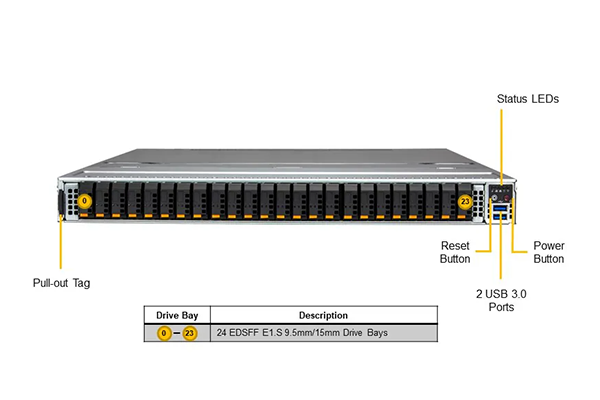

Supermicro SSG-121E-NES24R All Flash Storage Server

ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

2-CPU

ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

32 DIMMS

ServerWare® Server versatile and affordable

AIOM

ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

24-Drives

Intel®, AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

RPS 1+1

Intel®, AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

NVME

SSG-121E-NES24R All Flash Server Specification

System Specifications

DESCRIPTION

SPECIFICATIONS

Form Factor (LxWxH)

1U Rackmount
773.25mm x 438.4mm x 43.6mm

MB Size (WxL)

43.18cm x 34.65cm

Processor

Dual Socket E (LGA-4677) 5th/4th Generation Intel® Xeon® Scalable processors. Up to 270W TDP.

Chipset

Intel® C741

Memory



Memory Capacity

32 DIMM slots

Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM
Memory Type

5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4400MT/s (2DPC)

Drive Bay
Hot-swap

Default: Total 24 bay(s)

24 front hot-swap E1.S NVMe drive bay(s)
M.2

2 M.2 NVMe/SATA slot(s) (M-key 2280/22110)

PCIe Expansion Slot
  • Default
    • 2 PCIe 5.0 x16 FHFL slot(s)
    • 2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

PCI Interface

PCI Express* 5.0

Network Connectivity

Via AIOM

1 RJ45 1 GbE Dedicated IPMI LAN port(s)

IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Integrated Graphics

ASPEED AST2600 BMC

Front I/O
Buttons
  • Power On/Off button
LEDs
  • Network activity
  • Power status
  • SSD activity
  • System information (overheat/UID)

Power Supply Unit

2000W Redundant Power Supplies
Titanium Level (96%)

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C ~ 35°C (50°F ~ 95°F)

  • Non-operating Temperature:

       -40°C to 60°C (-40°F to 140°F)

  • Operating Relative Humidity:

       8% to 90% (non-condensing)

  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)

Warranty

Standard 3 Years Warranty
The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

3 years On-Site 24 x7
3 Years Product Warranty
Advance Parts Replacement
4 hours Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

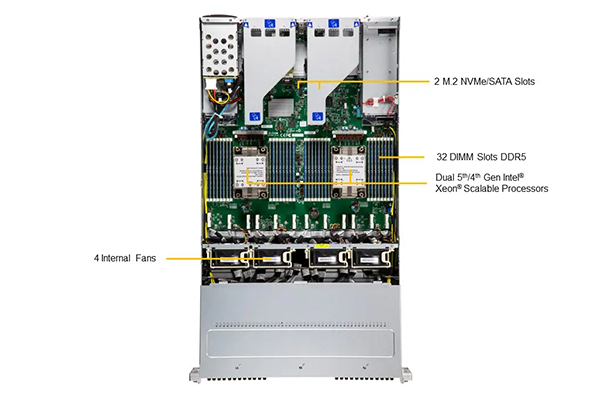

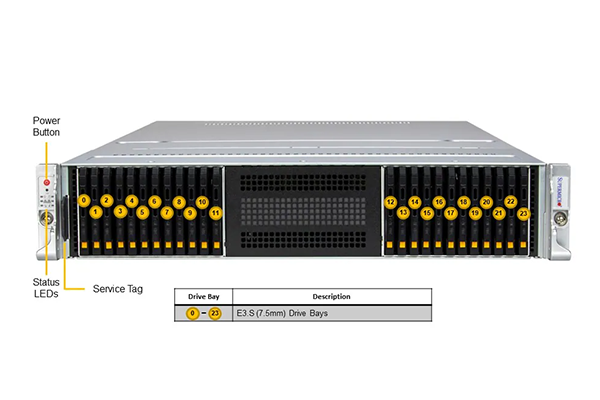

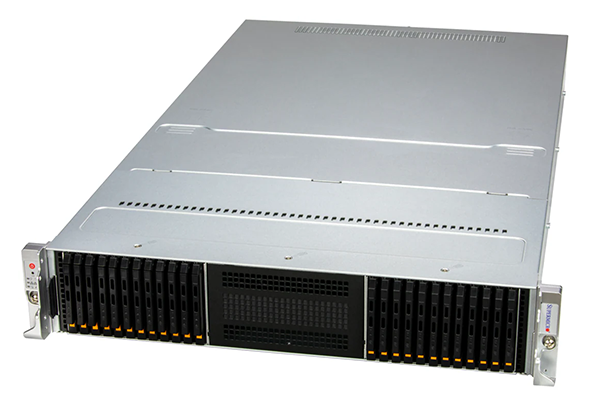

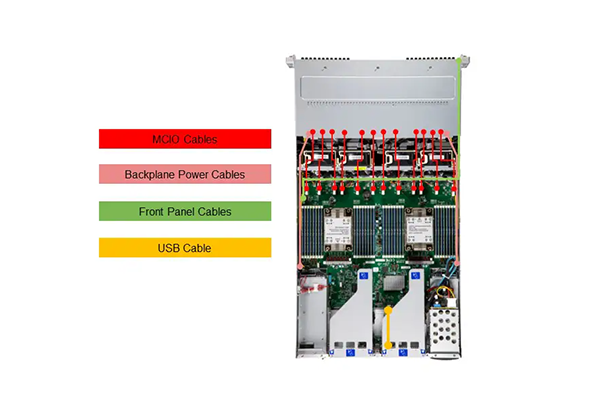

Supermicro SSG-221E-NE324R All Flash Storage Server

ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

2-CPU

ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

32 DIMMS

ServerWare® Server versatile and affordable

AIOM

ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

24-Drives

Intel®, AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

RPS 1+1

Intel®, AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

NVME

SSG-221E-NE324R All Flash Server Specification

System Specifications

DESCRIPTION

SPECIFICATIONS

Form Factor (LxWxH)

2U Rackmount
789.9mm x 438.4mm x 89.8mm

MB Size (WxL)

43.18cm x 34.65cm

Processor

Dual Socket E (LGA-4677) 5th/4th Generation Intel® Xeon® Scalable processors. Up to 350W TDP.

Chipset

Intel® C741

Memory



Memory Capacity

32 DIMM slots

Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM
Memory Type

5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4400MT/s (2DPC)

Drive Bay
Hot-swap

Default: Total 24 bay(s)

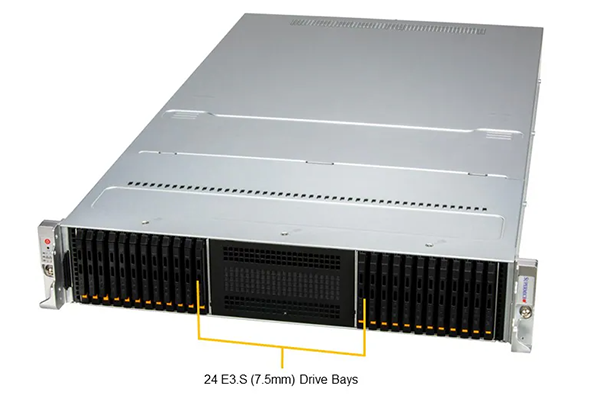

24 front hot-swap E3.S 1T NVMe drive bay(s)
M.2

2 M.2 NVMe/SATA slot(s) (M-key 2280/22110)

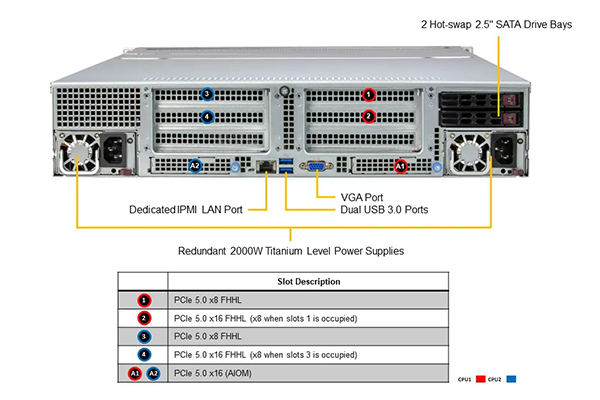

PCIe Expansion Slot
  • Default
    • 4 PCIe 5.0 x8 FHHL slot(s)
    • 2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
  • Option A
    • 2 PCIe 5.0 x8 FHHL slot(s)
    • 1 PCIe 5.0 x16 FHHL slot(s)
    • 2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
  • Option B
    • 2 PCIe 5.0 x16 FHHL slot(s)
    • 2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

PCI Interface

PCI Express* 5.0

Network Connectivity

Via AIOM

IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Integrated Graphics

ASPEED AST2600 BMC

Power Supply Unit

2000W Redundant Power Supplies
Titanium Level (96%)

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C ~ 35°C (50°F ~ 95°F)

  • Non-operating Temperature:

       -40°C to 60°C (-40°F to 140°F)

  • Operating Relative Humidity:

       8% to 90% (non-condensing)

  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)

Warranty

Standard 3 Years Warranty
The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

3 years On-Site 24 x7
3 Years Product Warranty
Advance Parts Replacement
4 hours Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

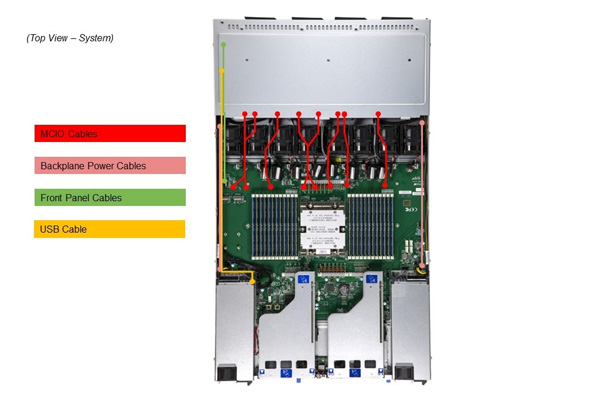

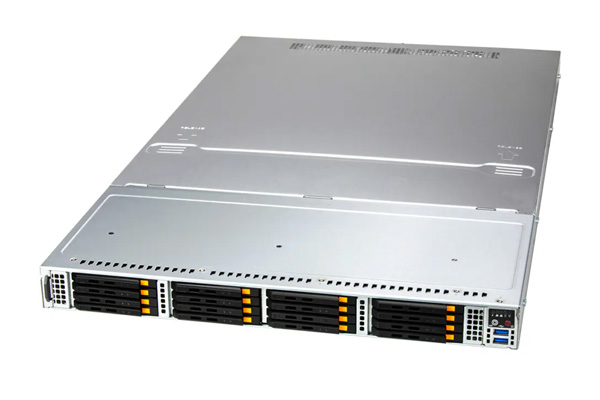

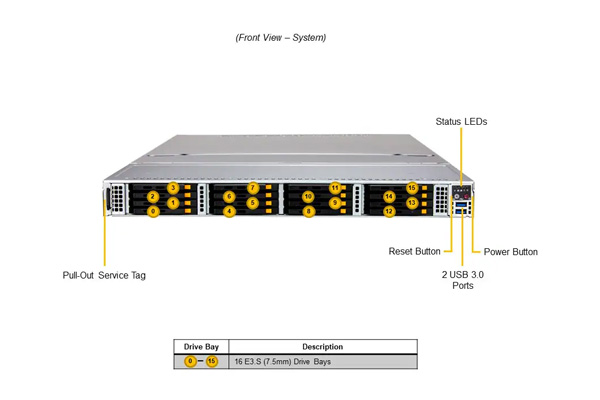

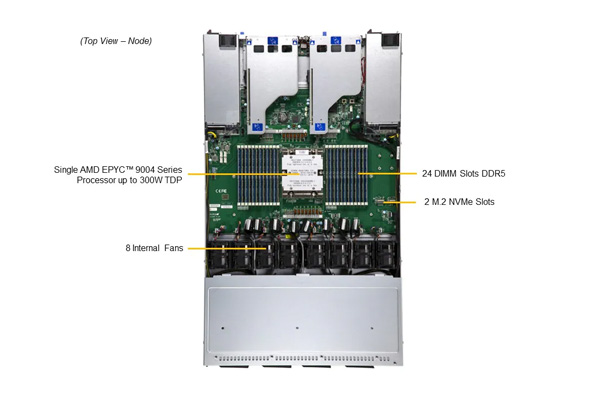

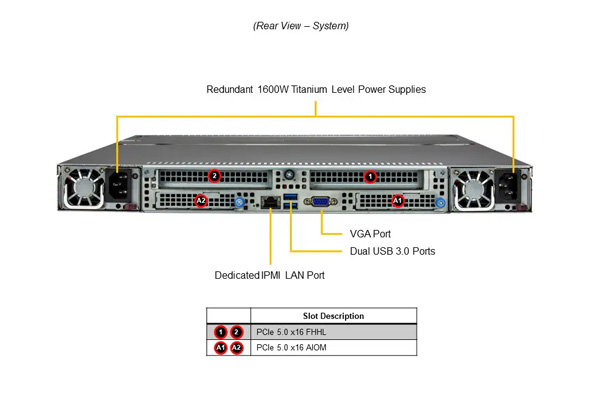

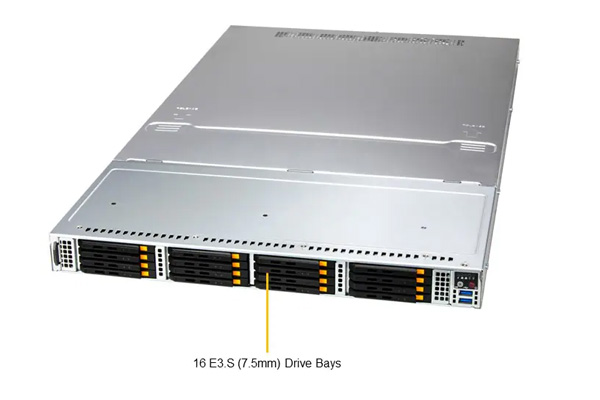

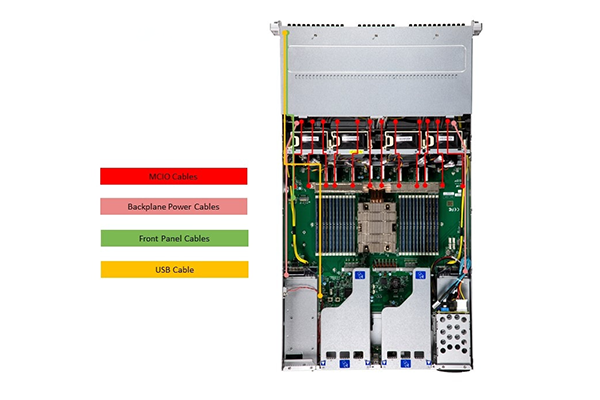

Supermicro ASG-1115S-NE316R All Flash Storage Server

ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

1-CPU

ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

24 DIMMS

ServerWare® Server versatile and affordable

AIOM

ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

16-Drives

Intel®, AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

RPS 1+1

Intel®, AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

NVME

ASG-1115S-NE316R All Flash Server Specification

System Specifications

DESCRIPTION

SPECIFICATIONS

Form Factor (LxWxH)

1U Rackmount
773.25mm x 438.4mm x 43.6mm

MB Size (WxL)

43.18cm x 34.62cm

Processor

Single Socket SP5 AMD EPYC™ 9004 Series processors. Up to 300W TDP.

Chipset

System on Chip

Memory



Memory Capacity
  • 24 DIMM slots
  • Max Memory (2DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM
Memory Type
  • 4800 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4000MHz (2DPC), up to 4800MHz (1DPC)

Drive Bay
Hot-swap
  • Default: Total 16 bay(s)
    • 16 front hot-swap E3.S 1T NVMe drive bay(s)
M.2
  • 2 M.2 PCIe 3.0 x2 NVMe slot(s) (M-key 2280/22110)

PCIe Expansion Slot
  • Default
    • 2 PCIe 5.0 x16 FHHL slot(s)
    • 2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
    • View AOC Options >
  • 2 M.2 PCIe 3.0 x2 NVMe slot(s) (M-key 2280/22110)

PCI Interface

PCI Express* 5.0

Network Connectivity

Via AIOM

1 RJ45 1 GbE Dedicated IPMI LAN port(s)

IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Integrated Graphics

Aspeed AST2600 BMC

Front I/O
Buttons
  • Power On/Off button
LEDs
  • Network activity
  • Power status
  • SSD activity
  • System information (overheat/UID)

Power Supply Unit

1600W Redundant Power Supplies
Titanium Level (96%)

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C ~ 35°C (50°F ~ 95°F)

  • Non-operating Temperature:

       -40°C to 60°C (-40°F to 140°F)

  • Operating Relative Humidity:

       8% to 90% (non-condensing)

  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)

Warranty

Standard 3 Years Warranty
The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

3 years On-Site 24 x7
3 Years Product Warranty
Advance Parts Replacement
4 hours Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

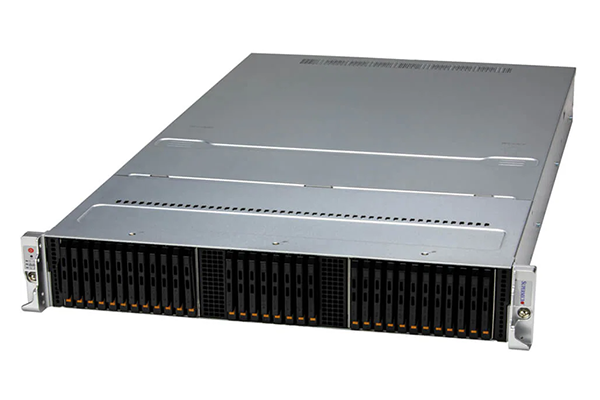

Supermicro ASG-2115S-NE332R All Flash Storage Server

ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

1-CPU

ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

24 DIMMS

ServerWare® Server versatile and affordable

AIOM

ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

32-Drives

Intel®, AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

RPS 1+1

Intel®, AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

NVME

ASG-2115S-NE332R All Flash Server Specification

System Specifications

DESCRIPTION

SPECIFICATIONS

Form Factor (LxWxH)

2U Rackmount
789.9mm x 438.4mm x 89.8mm

MB Size (WxL)

43.18cm x 34.62cm

Processor

Single Socket SP5 AMD EPYC™ 9004 Series processors. Up to 360W TDP.

Chipset

System on chip

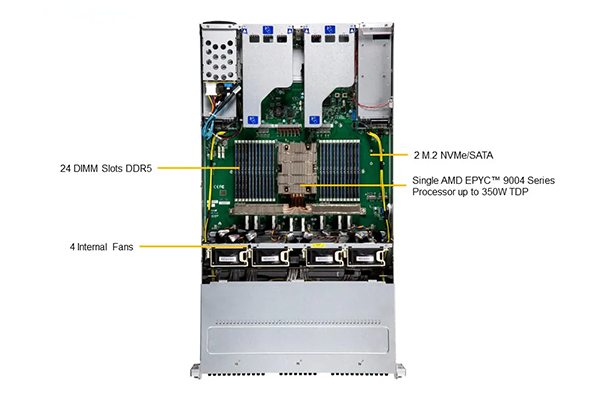

Memory



Memory Capacity

24 DIMM slots

Max Memory (1DPC): Up to 4TB 4800MT/s ECC DDR5 RDIMM/LRDIMM

Max Memory (2DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM
Memory Type

4800 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4000MHz (2DPC), up to 4800MHz (1DPC)

Drive Bay
Hot-swap

Default: Total 34 bay(s)

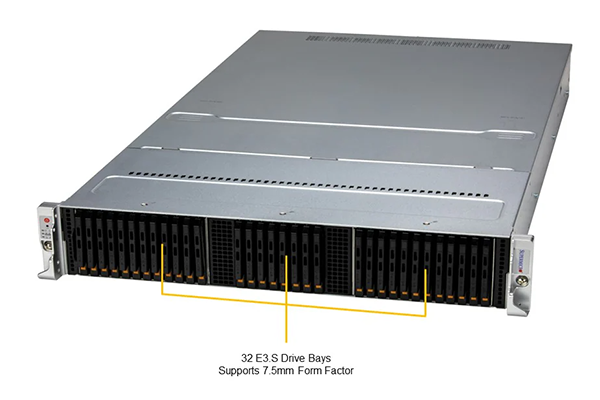

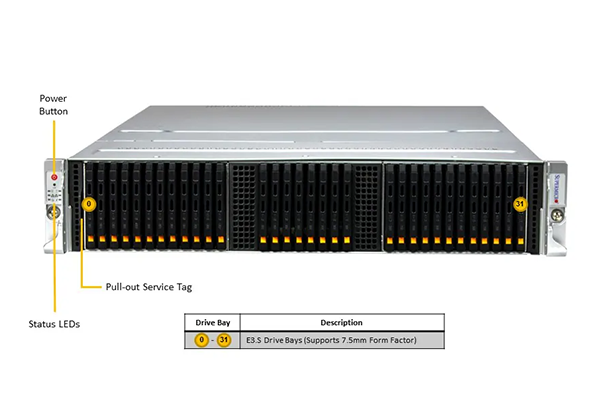

32 front hot-swap E3.S 1T NVMe drive bay(s)

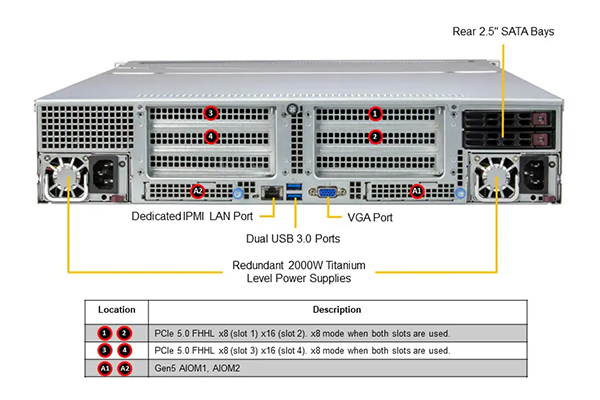

2 rear hot-swap 2.5″ SATA drive bay(s)
M.2

2 M.2 NVMe/SATA slot(s) (M-key 2280/22110)

PCIe Expansion Slot
  • Default
    • 2 PCIe 5.0 x16 FHHL slot(s)
    • 2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
  • 2 M.2 PCIe 3.0 x2 NVMe slot(s) (M-key 2280/22110)

PCI Interface

PCI Express* 5.0

Network Connectivity

Via AIOM

1 RJ45 1 GbE Dedicated IPMI LAN port(s)

IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Integrated Graphics

ASPEED AST2600 BMC

Power Supply Unit

2000W Redundant Power Supplies
Titanium Level (96%)

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C ~ 35°C (50°F ~ 95°F)

  • Non-operating Temperature:

       -40°C to 60°C (-40°F to 140°F)

  • Operating Relative Humidity:

       8% to 90% (non-condensing)

  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)

Warranty

Standard 3 Years Warranty
The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

3 years On-Site 24 x7
3 Years Product Warranty
Advance Parts Replacement
4 hours Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support
