ServerWare Server versatile and affordable

Complete Line of Intel Platform Servers

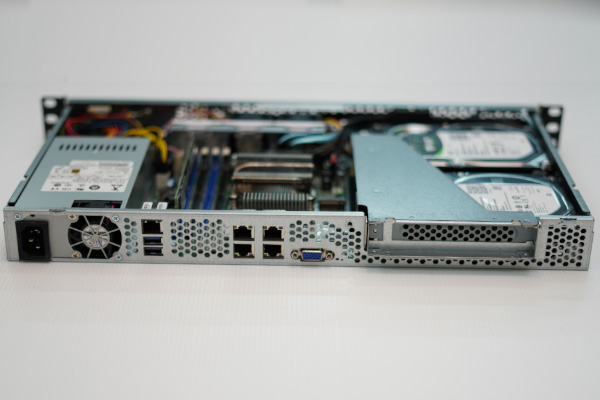

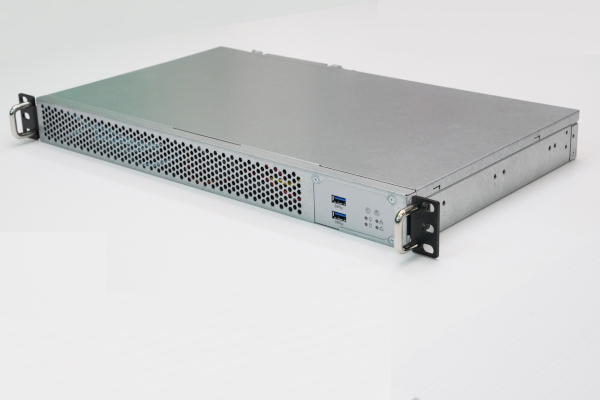

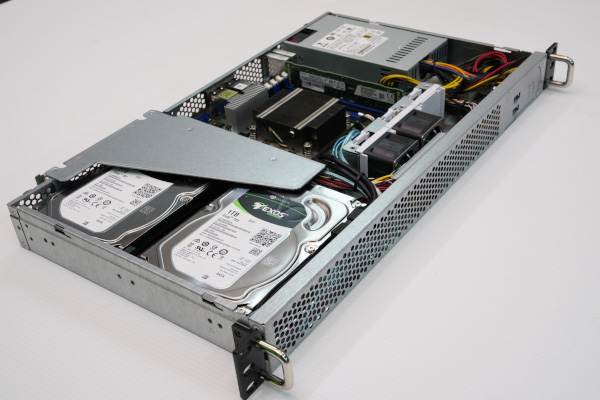

The ServerWare® SG11 1U Server System

Transforming The World Of Server Computing with Intel® Xeon® D

The ServerWare® SG11 Server brings the performance and advanced intelligence into a dense, low-power system. With enhanced reliability, availability, and serviceability features; platform storage extensions; and built-in hardware virtualization.

Powered by Intel® Xeon® processor D-1500 product family offers new options for optimizing a variety of workloads and infrastructure for midrange routers, network appliances, security appliances, wireless base stations, embedded midrange Internet of Things (IoT) devices, entry networking, midrange storage area network (SAN) and network attached storage (NAS) appliances, warm cloud storage, and more.

AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor, LSI , Adaptec

Superior Compute Performance with Low Power Consumption

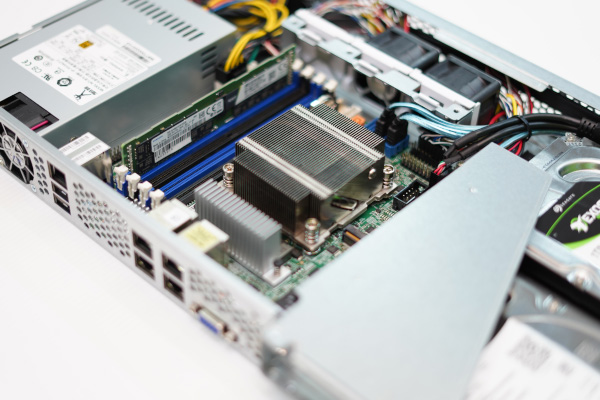

The ServerWare® SG11 Server System Features an intel® Xeon® processors D-1500 delivering an optimal unit that combines high-performance, extreme low energy consumption at 35W, improved uptime, and increased confidence for a 1U rack servers system. It provides an innovative and exceptional reliable server for appliances, data center cloud deployments as well as business IT uses.

Superior Compute Performance with Low Power Consumption Large Capacity Memory and Storage Enablement

Design with high memory capacity the ServerWare® SG11 supports up to 128GB DDR4 RDIMM Memories , combining storage performance and storage flexibility, the SG11 server is a great choice for enterprises of all sizes.

Offering a broad selection of drive and slot configurations for high performance features that industries such as finance, healthcare and telco need.

Superior Compute Performance with Low Power Consumption Extreme Networking Flexibility

To safeguard your business and customers, Integrated as a standard with 2 x 10Gbe and 2 x 1Gbe Network Port for superior networking capabilities that offers industry-leading protection, scalability and efficiency. The ServerWare® SG11 Server delivers flexible networking performance and exceptional reliable server for appliances, data center cloud deployments as well as business IT uses.

The ServerWare® SG11 Specifications

The ServerWare® SG11 is a short depth right-sized 1U rack server design for power, space, and performance intensive datacenter environments. Therefore, the ServerWare® SG11 not only largely cuts cost, but also dramatically saves energy, data center floor space, and cabling to achieve greater performance/watt, performance/dollar, and performance/ft3 compared to traditional 1U 1-socket servers.

The ServerWare® SG11

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	1U Rack Server 428mm x 25m x 43mm
MB Size (WxL)	170mm x 170mm
Processor	Intel® Xeon® processor D-1518, Single socket FCBGA 1667; 4-Core, 8 Threads, 35W (Higher Core/Threads Model Available)
Chipset	System on Chip
SAS Controller	Non Applicable
Memory	Up to 128GB Registered ECC RDIMM, DDR4-2133MHz Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots
Drive Bay	(2) internal 3.5″ HDD 6G Bays with RV Protection or (2) internal 2.5″ HDD/SSD
Onboard Storage Device	SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 RSTe 6 x SATA3 (6Gbps) port
HDD Backplane	None
Expansion Slot	1 PCI-E 3.0 x16 M.2 Interface: 1 SATA/PCI-E 3.0 x4 Form Factor: 2242, 2280 Key: M-Key
PCI Interface	PCI Express* 3.0
Network Controllers	2 RJ45 10GBase-T ports 2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Integrated Graphics	Aspeed AST2400 BMC
I/O	1 x Power button 1 x Reset button 2 x USB 2.0 ports (2 Front) 2 x USB 3.0 ports (2 rear) 1 x TPM Header 1 x VGA Port
Power Supply Unit	300W Fixed PSU
Operating Environment	Operating temperature: 5°C to 35°C (41°F to 95°F) Non-operating temperature: -40°C to 65°C (-40°F to 149°F) Operating relative humidity: 50% to 85%RH Non-operating relative humidity: 20% to 90%RH
Warranty	Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

3 years On-Site 24 x7
3 Years Product Warranty
Advance Parts Replacement
4 hours Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

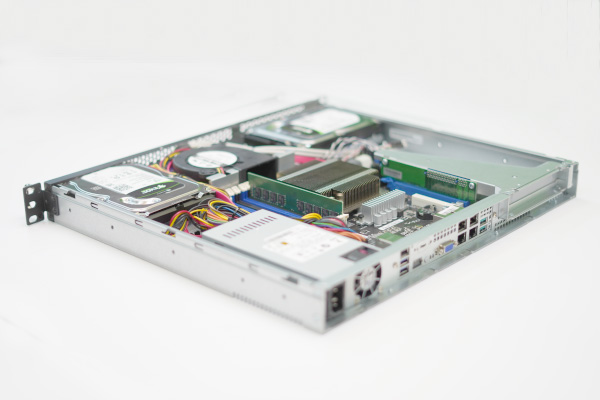

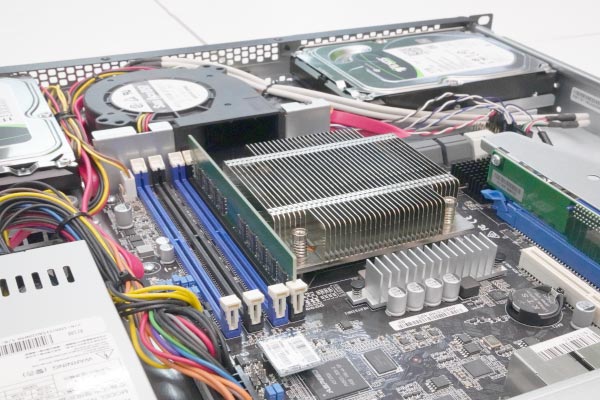

The ServerWare® SG13 1U Server System

Industry most versatile and highly affordable 1U server system

The industry most cost effective data center specific server driven by a dense 1U form factor that you can confidently deploy for virtualization, data base, or web server computing? The ServerWare® SG13 Server delivers a 1U chassis withIntel^® Xeon^® E platform processors delivering an optimal unit that combines high-performance, low energy consumption, improved uptime, and increased confidence.

Intel®, AMD, EPYC, Server, Storage, Network, NVME, Mellanox, TYAN, ASUS, supermicro®,ServerWare® is SuperMicro® distributor, Asus® Server Distributor, biqmind

serverwareIntel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

Compact server with multiple expandability options

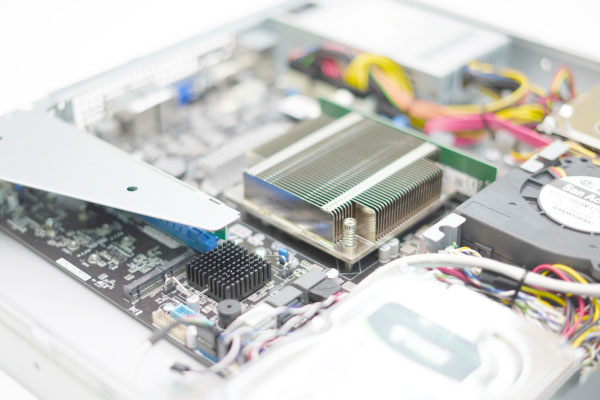

The ServerWare® SG13 Server System is a server system based on the Intel^® Xeon^® E platform and Intel^® C262 chipset offering quad server-class Intel^® Ethernet and flexible expandability with dual M.2, 8 SATA 6G, two PCIe. The 9.6” x 9.6” micro ATX form factor can be easily integrated in short-depth chassis to greatly increase rack compute density.

Dual Intel^® I210AT Gigabit Ethernet

Design features DUAL server-class Intel^® Ethernet ports with the I210 controllers and teaming support that speed up the network bandwidth and the failover function ensures uninterrupted network connection. This suits virtualization applications perfectly which requires ultrafast and reliable network.

Quad M.2 unleash independent and redundant I/O for OS drive

With Quad M.2 for data performance and redundancy.
Capacity up to 3TB M.2 is capable of RAID 0, 1 and bring up better back-up solution for internal OS drive.

The ServerWare® SG13 Specifications

The ServerWare® SG13 is precisely tailored for power, space, and performance-intensive datacenter environments. As a result, it not only significantly reduces costs but also remarkably conserves energy, datacenter floor space, and cabling, leading to superior performance per watt, per dollar, and per cubic foot compared to traditional 1U 1-socket servers.

The ServerWare® SG13

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	1U Rack Server 381mm x 482.6mm x 44.4 mm
MB Size (WxL)	244mm x 244mm
Processor	Intel® Xeon® E-2400 Series Processor, Pentium®* Processor, Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP
Chipset	Intel® C262
SAS Controller	Non Applicable
Memory	4400/4000/3600 MT/s Up to 128GB of memory with speeds of up to 4400MT/s (2DPC)
Drive Bay	(2) internal 3.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device	Intel® C262 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 M.2 Interface: 1 PCIe 4.0 x4 Form Factor: 2280/22110 Key: M-Key
HDD Backplane	None
Expansion Slot	1 PCIe 5.0 x8 (in x16 slot)
PCI Interface	1 PCIe 5.0 x8 (in x16 slot)
Network Controllers	Dual LAN with 1GbE with Intel® I210
IPMI	ASPEED AST2600 BMC
Integrated Graphics	1 Aspeed AST2600 BMC port(s)
I/O	1 x Power button 1 x Reset button 2 x USB 3.0 port (Front) 2 x USB 3.0 port (Rear) 1 x TPM Header 1 x VGA Port
Power Supply Unit	300W Fixed PSU
Operating Environment	Operating temperature: 5°C to 35°C (41°F to 95°F) Non-operating temperature: -40°C to 65°C (-40°F to 149°F) Operating relative humidity: 50% to 85%RH Non-operating relative humidity: 20% to 90%RH
Warranty	Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

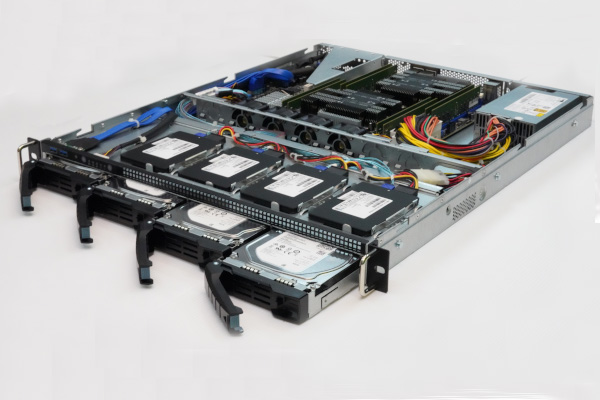

The ServerWare® SG16 1U Server System

Rack-optimized system for expansion flexibility supporting maximum compute, memory, and I/O capacity

Introducing the ServerWare® SG16 1U Server: a highly adaptable rack-optimized system designed for maximum expansion flexibility, offering exceptional compute, memory, and I/O capacity.

Powered by 5th Gen Intel® Xeon® Scalable Processors, ServerWare® SG16 1U Server System delivers superior per-core performance and supports up to 2TB Reg ECC Memories. Equipped with a Dual 10Gbe Network Port, 4 SSD slots, and 4 Hotswap bays, the SG16 offers robust computing power in a compact 1U form factor.

Intel®, supermicro®, server, storage, networking, 1U, DELL, HPE, IOT, NVME, ServerWare® is SuperMicro® distributor, Asus® Server Distributor,

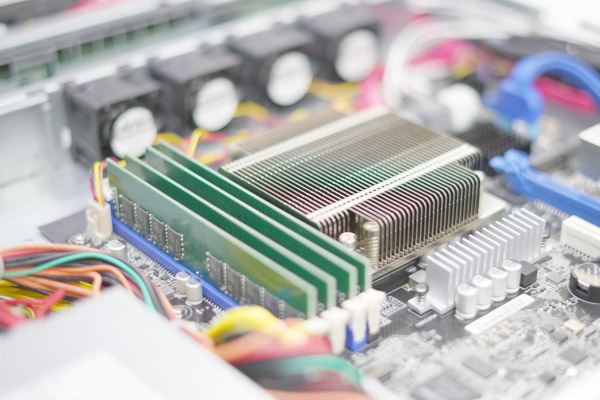

Powered by the latest5th Gen Intel® Xeon® Scalable Processors

Fueled by cutting-edge 5th Gen Intel® Xeon® Scalable Processors, the ServerWare® SG16 1U Server System boasts enhanced per-core performance and 8 memory channels. This configuration delivers a remarkable 50% increase in memory bandwidth and capacity, ensuring accelerated average system-level performance compared to earlier generations.

Boost IOPS with high-capacity memory, cache, and storage in 1U.

Maximize IOPS performance with the ServerWare® SG16, featuring ample memory, cache, and storage capacities in a sleek 1U design. Engineered for unparalleled flexibility, easily configure up to 2TB DDR5 RDIMM memory upgrades and utilize (4) SSDs for caching, along with (4) Hotswap HDDs for extensive storage capabilities, ensuring optimal performance across various configurations.

Increased performance or data redundancy with dual M.2 PCI 5.0 4x Lane SSDs in RAID mode

Dual M.2 SSDs in RAID mode provide boosted performance and data redundancy. Whether in RAID 0 or 1 configurations, experience faster write speeds, up to 40% compared to single SSD setups, and remarkably quick read operations, up by 84%. Alternatively, opt for RAID 1 to ensure immediate data redundancy.

The ServerWare® SG16 Specifications

The ServerWare® SG16, powered by a single high-performing 5th Gen Intel Xeon Scalable processor, delivers cutting-edge computing capabilities and expandability. Ideal for mainstream level servers where efficiency is crucial alongside performance and reliability. Customize your specifications to perfection and maximize your return on investment in server infrastructure confidently.

The ServerWare® SG16-Intel® Xeon® E

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	1U Rack Server 555mm x 425mm x 43mm
MB Size (WxL)	244mm x 244mm
Processor	Intel® Xeon® E-2400 Series Processor, Pentium®* Processor, Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP
Chipset	Intel® C262 chipset
SAS Controller	Optional LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory	Up to 128GB ECC Unbuffered DIMM, DDR5-4400MHz, in 4 DIMM slots
Drive Bay	(4) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection (4) internal 2.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device	Intel® C262 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
HDD Backplane	1 x 4-port 12Gb SAS backplane
PCIe Expansion Slot	1 x PCI-E 5.0 x16 M.2 Interface: 1 PCI-E 4.0 x4 Form Factor: 2280/22110 Key: M-Key
PCI Interface	PCI Express* 5.0
Network Controllers	Dual LAN with 1GbE with Intel® I210 1x RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2600 BMC
Integrated Graphics	BMC integrated Aspeed AST2600
I/O	1 x Power button 1 x Reset button 2 x USB 3.0 port (Front) 2 x USB 2.0 port (Rear) 2 x USB 3.2 port (Rear) 1 x COM port (Rear) 1 x TPM Header 1 x VGA port
Power Supply Unit	500W Fixed PSU
Operating Environment	Operating temperature: 0°C to 50°C (32°F to 122°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% – 90% (non-condensing) Non-operating relative humidity: 5% – 95% (non-condensing)
Warranty	Standard 3 Years Warranty

The ServerWare® SG16- 5th Gen Intel Xeon Scalable processor

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	1U Rack Server 555mm x 425mm x 43mm
MB Size (WxL)	313mm x 257mm
Processor	5th/4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E), CPU TDP supports up to 350W TDP
Chipset	Intel® C741 Chipset
SAS Controller	Optional LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory	Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s (1DPC) in 8 DIMM slots
Drive Bay	(4) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection (4) internal 2.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device	Intel® C741 controller for 10 SATA3 (6 Gbps) ports
HDD Backplane	1 x 4-port 12Gb SAS backplane
PCIe Expansion Slot	1 x PCI-E 5.0 x16 M.2 Interface: 2 PCI-E 5.0 x4 Form Factor: 2280/22110 Key: M-Key
PCI Interface	PCI Express* 5.0
Network Controllers	Dual LAN with 10GBase-T with Intel® X550 1x RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2600 BMC
Integrated Graphics	BMC integrated Aspeed AST2600
I/O	1 x Power button 1 x Reset button 2 x USB 3.0 port (Front) 2 x USB 2.0 port (Rear) 2 x USB 3.2 port (Rear) 1 x USB Type A 1 x TPM Header 1 x VGA Port
Power Supply Unit	500W Fixed PSU
Operating Environment	Operating temperature: 5°C to 35°C (41°F to 95°F) Non-operating temperature: -40°C to 65°C (-40°F to 149°F) Operating relative humidity: 50% to 85%RH Non-operating relative humidity: 20% to 90%RH
Warranty	Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

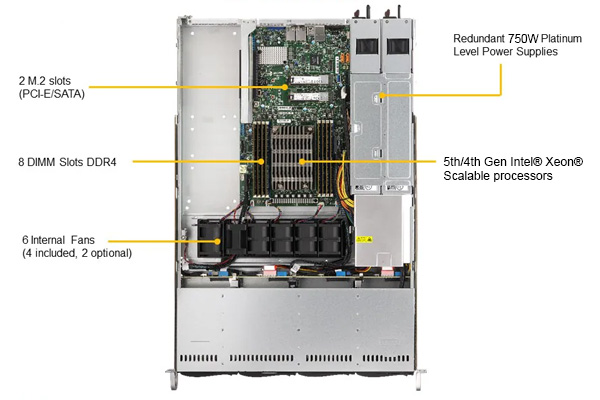

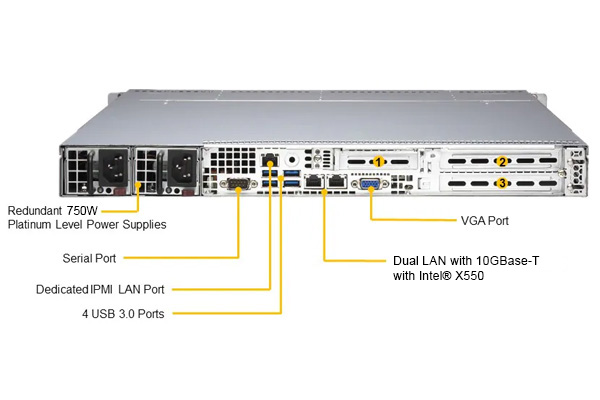

The ServerWare® SG17S 1U Server System

A rack-optimized system featuring a 1-socket spread-core design offers expansion flexibility, supporting maximum compute, memory, and storage I/O capacity.

The ServerWare® SG17S Server provides scalable storage options within its rack-optimized system featuring a 1-socket spread-core design. Utilizing the power of the 5th Generation Intel® Xeon® Scalable Processors, this server ensures optimal performance, making it an ideal choice for small businesses requiring robust and cost-effective solutions with extensive storage capacity in a compact 1U form factor. Engineered for reliability and durability, it caters to a wide range of applications including data centers, cloud environments, SMBs, embedded systems, and storage & security appliances.

Broad Application Platform that is both Powerful and Affordable

ServerWare® SG17S is simplified, tailored to meet the specific needs of small and medium businesses and datacenters. Cable-free, 8 x HotSwap HDD allows for easy change over . Powered by the Intel^® Xeon^® Processor, Up to 2TB of memory, (8)Eight 2.5″ Hotswap SATA/SAS 6G/12G SSDs, Dual 10 GbE RJ45 ports and redundant power supply

Mainstream Application Optimized

The ServerWare® SG17S 1U server, optimized for mainstream applications, is tailored for entry-level or volume selections. Enterprise IT Managers have the freedom to select the precise model that aligns with their specific application requirements, ensuring integration of the exact features needed for seamless operation.

Innovative and designed for data centers

Designed for Data Center Optimization, the design is meticulously crafted to meet the intricate demands of floor space and energy consumption, ultimately leading to a reduced Total Cost of Ownership (TCO). Enhanced Thermal Architecture and High-Efficiency Power Supplies cater to data center operations, while the Short-Depth Design ensures seamless server deployments in space- and power-constrained environments, offering unparalleled efficiency where every inch and watt count.

The ServerWare® SG17S Specifications

The ServerWare® SG17S is crafted for power, space, storage, and performance-intensive data center environments, available in both single and dual socket configurations within a 1U rack design. Offering flexibility in storage, power, and memory capacity, along with robust IOPs and Capacity Management, the SG17S stands as a versatile data center server, allowing you to scale effortlessly according to your evolving needs.

The ServerWare® SG17S

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	1U Rack Server 503 x 437 x 43 mm
MB Size (WxL)	312mm x 257mm
Processor	5th/4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E), CPU TDP supports up to 350W TDP
Chipset	Intel® C741 Chipset
SAS Controller	Optional LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory	Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s (1DPC) in 8 DIMM slots
Drive Bay	(8) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device	Intel® C741 controller for 10 SATA3 (6 Gbps) ports
HDD Backplane	1 x 8-port 12Gb SAS backplane
PCIe Expansion Slot	1 x PCI-E 5.0 x16 M.2 Interface: 2 PCI-E 5.0 x4 Form Factor: 2280/22110 Key: M-Key
PCI Interface	PCI Express* 5.0
Network Controllers	Dual LAN with 10GbE with Intel® X550 1x RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2600 BMC
Integrated Graphics	BMC integrated Aspeed AST2600
I/O	1 x Power button 1 x Reset button 2 x USB 2.0 port (Rear) 2 x USB 3.2 port (Rear) 1 x USB Type A port 1 x TPM Header 1 x VGA Port
Power Supply Unit	800W 1U Platinum redundant power supply
Operating Environment	Operating temperature: 5°C to 35°C (41°F to 95°F) Non-operating temperature: -40°C to 65°C (-40°F to 149°F) Operating relative humidity: 50% to 85%RH Non-operating relative humidity: 20% to 90%RH
Warranty	Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

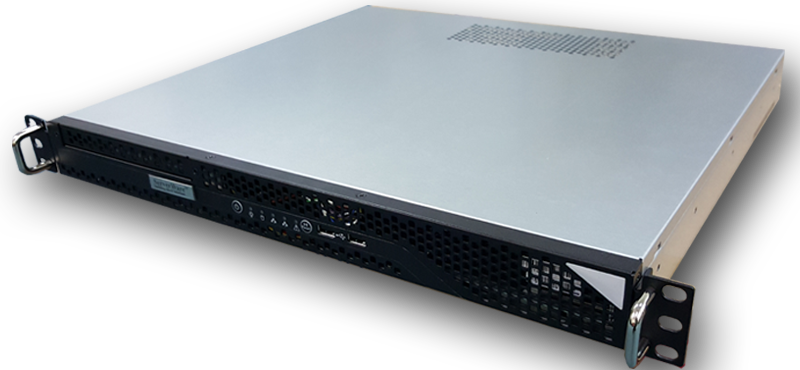

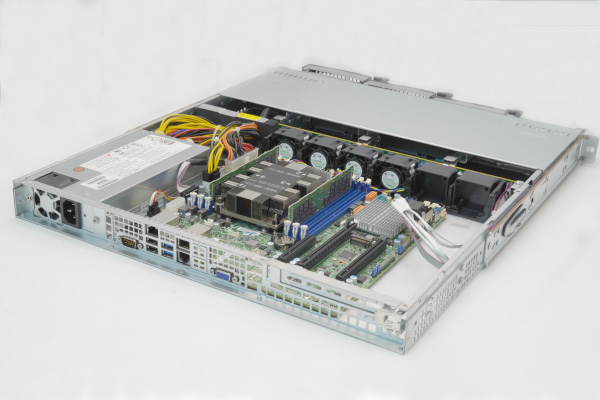

The ServerWare® SG19 1U Server System

Flexible application usage mainstay in computing or Industrial Computing application.

The ServerWare® ST4E is a Cold Storage, Archival, High Performance Computing, High Available Storage System, Webservers, Big Data, Video Streaming or Security Video System, You name it. The SG4E HD are design to be extremely Flexible is application usage. Be it in mainstay computing or Industrial Computing application.

Single large scale storage servers for scaling up and scaling out

The ServerWare® ST3E Server System provides for 24 HDD bays allowing you to build a massive capacities of up to 384TB raw data space.
Comes with an option of a LSI Hardware RAID controller to manage redundancy of data or a Zero RAID controller to manage data through software defined.

Low Latency High IOPS Throughput

Scalable and hybrid storage solution that fits up to 24 hot-swap 2.5/2.5-inch HDD or SSDs for increased storage input/output operations. Low latency configuration with SSD and M.2 caching for budget-friendly flexibility. The serverware ST4E is optimized for low latency with a direct connection between the CPU and PCIe Gen 3 storage devices, providing faster data transfers for the best performance in advanced computing applications.

Eliminate data bottlenecks in sizable storage environments.

The ServerWare® ST3E features a 12 hot-swap hard drive bays for data storage and 2 x SSD bays for cache integration or OSes. HW RAID SAS 12G and Intel® Xeon® processors with support for up to 1TB of DDR4 memory, quad 1Gbe and four free PCI Express expansion slots, the ST4E has the ability to support the maximum amount of expansion cards in a 4U Form Factor

The ServerWare® SG19 Specifications

The ServerWare® ST4E is based on Intel® Xeon® Processor Product Family designed for high performance and reliability. With support for single Intel^® Xeon^® E platform/dual 2^nd Gen Intel Xeon Scalable processors andeight DDR4 memory channels per processor, 2 high speed QPI links, multiple PCI-E G3 slots, Intelligent Management (IPMI 2.0), iKVM-over-LAN and a high-efficiency power supply.

The ServerWare® ST4E delivers 12Gb/s SAS to the server marketplace creates solutions that eliminate data bottlenecks in sizable storage environments.

The ServerWare® SG19

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	1U Rack Server 650mm x 437mm x 43mm
MB Size (WxL)	Proprietary WIO 203mm x 330mm
Processor	5th/4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
Chipset	Intel® C741 Chipset
SAS Controller	Optional LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory	Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s (1DPC) in 8 DIMM slots
Drive Bay	(4) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device	Intel® C741 controller for 10 SATA3 (6 Gbps) ports
HDD Backplane	1 x 4-port 12Gb SAS backplane
PCIe Expansion Slot	1 PCIe 5.0 x8 Right Riser (in x16) slot, 1 PCIe 5.0 x32 Left Riser Slot, 5 PCIe 5.0 x8 PCIe5.0 MCIO connector M.2 Interface: 1 PCIe 3.0 x2 M.2 Form Factor: 2280, 22110 M.2 Key: M-Key
PCI Interface	PCI Express* 5.0
Network Controllers	Dual LAN with 10GBase-T with Intel® X550 1x RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2600 BMC
Integrated Graphics	BMC integrated Aspeed AST2600
I/O	1 x Power button 1 x Reset button 2 x USB 3.0 port (Front) 2 x USB 2.0 port (Rear) 2 x USB 3.2 port (Rear) 1 x USB Type A 1 x COM port 1 x TPM Header 1 x VGA port
Power Supply Unit	750W 1U Platinum redundant power supply
Operating Environment	Operating temperature: 5°C to 35°C (41°F to 95°F) Non-operating temperature: -40°C to 65°C (-40°F to 149°F) Operating relative humidity: 50% to 85%RH Non-operating relative humidity: 20% to 90%RH
Warranty	Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

The ServerWare® ST2A Server System

Versatile utilization extends across both conventional computing and industrial computing applications.

The ServerWare® ST2A is a versatile system designed for a range of applications including cold storage, archival, high-performance computing, high-availability storage, webservers, big data, video streaming, and security video systems. The ST2A is engineered for utmost flexibility across various application scenarios, whether in mainstream computing or industrial applications.

Single, large-scale storage servers designed for both scaling up and scaling out.

The ServerWare® ST2A Server System provides for 24 HDD bays allowing you to build a massive capacities of up to 384TB raw data space.
Comes with an option of a LSI Hardware RAID controller to manage redundancy of data or a Zero RAID controller to manage data through software defined.

Low Latency High IOPS Throughput

Scalable and hybrid storage solution that fits up to 24 hot-swap 2.5/2.5-inch HDD or SSDs for increased storage input/output operations. Low latency configuration with SSD and M.2 caching for budget-friendly flexibility. The serverware ST2A is optimized for low latency with a direct connection between the CPU and PCIe Gen 3 storage devices, providing faster data transfers for the best performance in advanced computing applications.

Eliminate data bottlenecks in sizable storage environments.

The ServerWare® ST2A features a 12 hot-swap hard drive bays for data storage and 2 x SSD bays for cache integration or OSes. HW RAID SAS 12G and Intel® Xeon® processors with support for up to 1TB of DDR4 memory, quad 1Gbe and four free PCI Express expansion slots, the ST2A has the ability to support the maximum amount of expansion cards in a 2U Form Factor

The ServerWare® ST2A Specifications

The ServerWare® ST2A is based on Intel® Xeon® Processor Product Family designed for high performance and reliability. With support for single Intel^® Xeon^® E platform/dual 2^nd Gen Intel Xeon Scalable processors andeight DDR4 memory channels per processor, 2 high speed QPI links, multiple PCI-E G3 slots, Intelligent Management (IPMI 2.0), iKVM-over-LAN and a high-efficiency power supply.

The ServerWare® ST2A delivers 12Gb/s SAS to the server marketplace creates solutions that eliminate data bottlenecks in sizable storage environments.

The ServerWare® ST2A – Intel® Xeon® E platform

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	2U Rack Server 645mm x 430mm x 88mm
MB Size (WxL)	244mm x 244mm
Processor	Intel® Xeon® E-2400 Series Processor, Pentium®* Processor, Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP
Chipset	Intel® C262 chipset
SAS Controller	LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory	Up to 128GB ECC Unbuffered DIMM, DDR5-4400MHz, in 4 DIMM slots
Drive Bay	(24) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection (2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device	Intel® C262 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
HDD Backplane	1 x 24-port 12Gb SAS backplane with a 36-PHY expander chip and 3 SFF-8643 connectors
PCIe Expansion Slot	1 PCIe 5.0 x8 1 PCIe 5.0 x8 (in x16) 2 PCIe 4.0 x4 (in x8) M.2 Interface: 1 PCIe 4.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key
PCI Interface	PCI Express* 5.0
Network Controllers	Dual LAN with 1GbE with Intel® I210 1x RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2600 BMC
Integrated Graphics	BMC integrated Aspeed AST2600
I/O	1 x Power button 1 x Reset button 2 x USB 3.0 (Front) 2 x USB 2.0 (Rear) 2 x USB 3.2 (Rear) 1 x USB Type A 1 x COM port 1 x TPM header 1 x VGA port
Power Supply Unit	800W 1+1 redundant PSU 80+ Platinum
Operating Environment	Operating temperature: 0°C – 50°C (32°F – 122°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% – 90% (non-condensing) Non-operating relative humidity: 5% – 95% (non-condensing)
Warranty	Standard 3 Years Warranty

The ServerWare® ST2A – Single Socket Scalable Xeon®

System Specifications

DESCRIPTION

SPECIFICATIONS

Form Factor (LxWxH)

2U Rack Server
645mm x 430mm x 88mm

MB Size (WxL)

312mm x 257mm

Processor

5th/4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E), CPU TDP supports up to 350W TDP

Chipset

Intel® C741 Chipset

SAS Controller

LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller
HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support

Memory

Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s (1DPC) in 8 DIMM slots

Drive Bay

(24) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection (2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection

Onboard Storage Device

Intel® C741 controller for 10 SATA3 (6 Gbps) ports

HDD Backplane

1 x 24-port 12Gb SAS backplane with a 36-PHY expander chip and 3 SFF-8643 connectors

PCIe Expansion Slot

3 PCIe 5.0 x8,
2 PCIe 5.0 x16,
2 PCIe 5.0 x8 PCIe5.0 MCIO connector
M.2 Interface: 2 PCIe 5.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-Key

PCI Interface

PCI Express* 5.0

Network Controllers

Dual LAN with 10GBase-T with Intel® X550
1x RJ45 Dedicated IPMI LAN port

IPMI

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2600 BMC

Integrated Graphics

BMC integrated Aspeed AST2600

I/O

1 x Power button
1 x Reset button
2 x USB 3.0 (Front)
2 x USB 2.0 (Rear)
2 x USB 3.2 (Rear)
1 x USB Type A
1 x COM port
1 x TPM header
1 x VGA port

Power Supply Unit

800W 1+1 redundant PSU 80+ Platinum

Operating Environment

Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH
Non-operating relative humidity: 20% to 90%RH

Warranty

Standard 3 Years Warranty

The ServerWare® ST2A – Dual Socket Scalable Xeon®

System Specifications

DESCRIPTION

SPECIFICATIONS

Form Factor (LxWxH)

2U Rack Server
645mm x 430mm x 88mm

MB Size (WxL)

307mm x 332mm

Processor

5th/4th Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4677 (Socket E) , CPU TDP supports up to 350W TDP

Chipset

Intel® C741 Chipset

SAS Controller

LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller
HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support

Memory

Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s in 16 DIMM slots

Drive Bay

(24) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection (2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection

Onboard Storage Device

Intel® C741 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Intel® C741 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1

HDD Backplane

1 x 24-port 12Gb SAS backplane with a 36-PHY expander chip and 3 SFF-8643 connectors

PCIe Expansion Slot

2 PCIe 5.0 x8
4 PCIe 5.0 x16
6 NVMe ports PCIe 5.0 x4 via 3 MCIO connectors
M.2 Interface: 2 PCIe 4.0 x2
M.2 Form Factor: 2280, 22110
M.2 Key: M-Key

PCI Interface

PCI Express* 5.0

Network Controllers

Dual LAN with Broadcom BCM57416 10GBase-T
1x RJ45 Dedicated IPMI LAN port

IPMI

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2600 BMC

Integrated Graphics

BMC integrated Aspeed AST2600

I/O

1 x Power button
1 x Reset button
2 x USB 3.0 (Front)
4 x USB 3.0 (Rear)
1 x USB Type A
1 x COM port
1 x TPM header
1 x VGA port

Power Supply Unit

800W 1+1 redundant PSU 80+ Platinum

Operating Environment

Operating temperature: 10°C to 35°C (50°F to 95°F)
Non-operating temperature: -40°C to 70°C (-40°F to 158°F)
Operating relative humidity: 8% – 90% (non-condensing)
Non-operating relative humidity: 5% – 95% (non-condensing)

Warranty

Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

The ServerWare® ST2E 2U Server System

Redefining the Challenges of Server Computing: Striking the Optimal Balance Between Compute and Storage Performance.

The ServerWare® ST2E Server offers scalability to meet your evolving needs. With options for a single socket system based on the Intel® Xeon® E platform or a dual socket system powered by the Intel® Scalable Xeon® Processor Family, it ensures peak performance for data centers requiring robust, flexible, and cost-effective computing solutions.

Built for reliability, durability, and versatile performance, this server is an ideal choice for various applications including data centers, clouds, SMBs, embedded systems, and storage & security appliances.

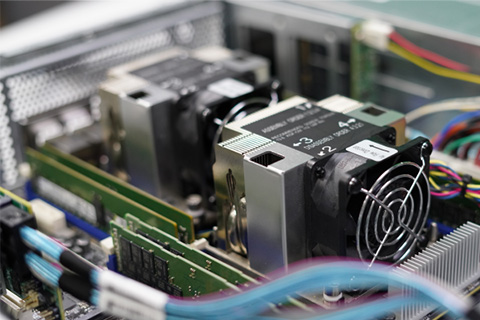

Powered by the latest 5^th Gen Intel Xeon Scalable processors

The ServerWare® ST2E Server System, featuring the latest 5th Gen Intel Xeon Scalable processors, offers enhanced per-core performance and 50% increased memory bandwidth through six channels, resulting in faster system-level performance than previous generations.

Enhanced performance or data redundancy achieved through dual M.2 SSDs in RAID mode.

Boost bandwidth, reduce latency, and minimize power usage. With RAID 0 configurations using dual M.2 SSDs, enjoy write speeds up to 40% faster and read operations a remarkable 84% faster than single M.2 SSD setups. Alternatively, ensure instant data redundancy by configuring M.2 devices into a RAID 1 setup for added peace of mind.

Address data bottlenecks within expansive storage environments.

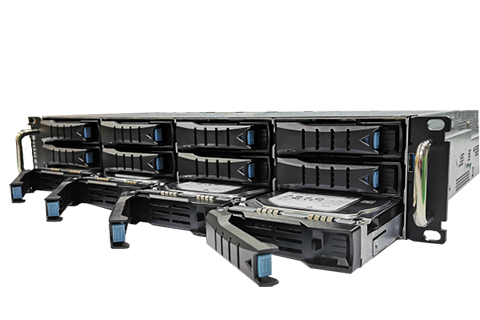

Equipped with 12 hot-swap hard drive bays for data storage and 2 SSD bays for cache integration or operating systems, the ServerWare® ST2E features HW RAID SAS 12G and Intel® Xeon® processors. With support for up to 2TB of DDR5 memory, quad 1Gbe, and four free PCI Express expansion slots, it offers maximum expansion card support within a compact 2U form factor.

The ServerWare® SG2E Specifications

The ServerWare® ST2E is engineered with the latest 5th Generation Intel® Xeon® Processor Product Family to ensure top-notch performance and reliability. Supporting either a single Intel® Xeon® E platform or dual 5th Gen Intel Xeon Scalable processors, it boasts eight DDR5 memory channels per processor, two high-speed QPI links, multiple PCI-E Gen5 slots, Intelligent Management (IPMI 2.0), iKVM-over-LAN, and a high-efficiency power supply.

Furthermore, the ServerWare® ST2E introduces 12Gb/s SAS technology to the server market, offering solutions that effectively mitigate data bottlenecks in large-scale storage environments.

The ServerWare® ST2E – Intel® Xeon® E platform

System Specifications

DESCRIPTION

SPECIFICATIONS

Form Factor (LxWxH)

2U Rack Server
645mm x 438mm x 88mm

MB Size (WxL)

244mm x 244mm

Processor

Intel® Xeon® E-2400 Series Processor, Pentium®* Processor, Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP

Chipset

Intel® C262 chipset

SAS Controller

LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support

Memory

Up to 128GB ECC Unbuffered DIMM, DDR5-4400MHz, in 4 DIMM slots

Drive Bay

(12) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection
(2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection

Onboard Storage Device

Intel® C262 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

HDD Backplane

1 x 12-port 12Gb SAS backplane expander

PCIe Expansion Slot

1 PCIe 5.0 x8
1 PCIe 5.0 x8 (in x16)
2 PCIe 4.0 x4 (in x8)
M.2 Interface: 1 PCIe 4.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key

PCI Interface

PCI Express* 5.0

Network Controllers

Dual LAN with 1GbE with Intel® I210
1x RJ45 Dedicated IPMI LAN port

IPMI

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2600 BMC

Integrated Graphics

BMC integrated Aspeed AST2600

Front I/O

1 x Power button
1 x Reset button
1 x USB 3.0 (Front)
2 x USB 2.0 (Rear)
2 x USB 3.2 (Rear)
1 x USB Type A
1 x COM port
1 x TPM header
1 x VGA port

Power Supply Unit

800W 1+1 redundant PSU 80+ Platinum

Operating Environment

Operating temperature: 0°C – 50°C (32°F – 122°F)
Non-operating temperature: -40°C to 70°C (-40°F to 158°F)
Operating relative humidity: 8% – 90% (non-condensing)
Non-operating relative humidity: 5% – 95% (non-condensing)

Warranty

Standard 3 Years Warranty

The ServerWare® ST2E - Single Socket Scalable Xeon®

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	2U Rack Server 645mm x 438mm x 88mm
MB Size (WxL)	312mm x 257mm
Processor	5th/4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E), CPU TDP supports up to 350W TDP
Chipset	Intel® C741 Chipset
SAS Controller	LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory	Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s (1DPC) in 8 DIMM slots
Drive Bay	(12) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection (2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device	Intel® C741 controller for 10 SATA3 (6 Gbps) ports
HDD Backplane	1 x 12-port 12Gb SAS backplane expander
PCIe Expansion Slot	3 PCIe 5.0 x8, 2 PCIe 5.0 x16, 2 PCIe 5.0 x8 PCIe5.0 MCIO connector M.2 Interface: 2 PCIe 5.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-Key
PCI Interface	PCI Express* 5.0
Network Controllers	Dual LAN with 10GBase-T with Intel® X550 1x RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2600 BMC
Integrated Graphics	BMC integrated Aspeed AST2600
Front I/O	1 x Power button 1 x Reset button 1 x USB 3.0 (Front) 2 x USB 2.0 (Rear) 2 x USB 3.2 (Rear) 1 x USB Type A 1 x COM port 1 x TPM header 1 x VGA port
Power Supply Unit	800W 1+1 redundant PSU 80+ Platinum
Operating Environment	Operating temperature: 5°C to 35°C (41°F to 95°F) Non-operating temperature: -40°C to 65°C (-40°F to 149°F) Operating relative humidity: 50% to 85%RH Non-operating relative humidity: 20% to 90%RH
Warranty	Standard 3 Years Warranty

The ServerWare® ST2E - Dual Socket Scalable Xeon®

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	2U Rack Server 645mm x 438mm x 88mm
MB Size (WxL)	307mm x 332mm
Processor	5th/4th Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4677 (Socket E) , CPU TDP supports up to 350W TDP
Chipset	Intel® C741 Chipset
SAS Controller	LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory	Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s (1DPC) in 8 DIMM slots
Drive Bay	(12) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection (2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device	Intel® C741 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Intel® C741 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1
HDD Backplane	1 x 12-port 12Gb SAS backplane expander
PCIe Expansion Slot	2 PCIe 5.0 x8 4 PCIe 5.0 x16 6 NVMe ports PCIe 5.0 x4 via 3 MCIO connectors M.2 Interface: 2 PCIe 4.0 x2 M.2 Form Factor: 2280, 22110 M.2 Key: M-Key
PCI Interface	PCI Express* 5.0
Network Controllers	Dual LAN with Broadcom BCM57416 10GBase-T 1x RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2600 BMC
Integrated Graphics	BMC integrated Aspeed AST2600
Front I/O	1 x Power button 1 x Reset button 1 x USB 3.0 (Front) 4 x USB 3.0 (Rear) 1 x USB Type A 1 x COM port 1 x TPM header 1 x VGA port
Power Supply Unit	800W 1+1 redundant PSU 80+ Platinum
Operating Environment	Operating temperature: 10°C to 35°C (50°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% – 90% (non-condensing) Non-operating relative humidity: 5% – 95% (non-condensing)
Warranty	Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

The ServerWare® ST3E 3U Server System

A quintessential mainstream storage server tailored to fulfill the demands of cloud storage.

The ServerWare® ST3E is a 3U storage server equipped with 16 hot-swap hard drive bays for data storage and 2 additional rear bays for OS drives. Featuringthe latest 5th Gen Intel Xeon Scalable processors, the ST3E supports up to 2TB of DDR5 memory. With dual 10GbE LAN ports, along with PCI Express 5.0 expansion slots, it accommodates 16 HDDs in just 3U of space.

Large-scale storage servers designed for both scaling up and scaling out.

The ServerWare® ST3E Server System offers 16 HDD bays, enabling you to create massive capacities of up to 480TB of raw data space. You have the choice of utilizing a Hardware RAID controller for data redundancy or a Zero RAID controller for software-defined data management.

Enhanced data redundancy can be achieved using dual M.2 SSDs configured in RAID mode.

Reduce latency and boost bandwidth efficiency while conserving power. RAID 0 configurations with dual M.2 SSDs optimize performance, resulting in notably faster write and read operations compared to single M.2 SSD setups.

Address data bottlenecks within expansive storage environments.

The ServerWare® ST3E is equipped with 16 hot-swap hard drive bays for data storage and 2 SSD bays for cache integration or operating systems. Featuring HW RAID SAS 12G and Intel® Xeon® processors, with support for up to 1TB of DDR4 memory, dual 10Gbe, and five free PCI Express expansion slots, the ST3E accommodates maximum expansion cards within a compact 3U form factor.

The ServerWare® ST3E Specifications

The ServerWare® ST3E, built on the latest Intel® Xeon® Processor Product Family, ensures high performance and reliability. Supporting either a single Intel® Xeon® E platform or 5th Gen Intel Xeon Scalable processors, it boasts DDR4 memory channels per processor and incorporates advanced features like high-speed QPI links, PCI-E Gen5 slots, Intelligent Management (IPMI 2.0), iKVM-over-LAN, and a high-efficiency power supply.

The ServerWare® ST3E – Intel® Xeon® E platform

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	3U Rack Server 645mm x 483mm x 132mm
MB Size (WxL)	244mm x 244mm
Processor	Intel® Xeon® E-2400 Series Processor, Pentium®* Processor, Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP
Chipset	Intel® C262 chipset
SAS Controller	LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory	Up to 128GB ECC Unbuffered DIMM, DDR5-4400MHz, in 4 DIMM slots
Drive Bay	(16) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection (2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection (4) Internal 2.5″ bays
Onboard Storage Device	Intel® C262 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
HDD Backplane	1 x 16-port 12Gb SAS backplane expander
PCIe Expansion Slot	1 PCIe 5.0 x8 1 PCIe 5.0 x8 (in x16) 2 PCIe 4.0 x4 (in x8) M.2 Interface: 1 PCIe 4.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key
PCI Interface	PCI Express* 5.0
Network Controllers	Dual LAN with 1GbE with Intel® I210 1x RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2600 BMC
Integrated Graphics	BMC integrated Aspeed AST2600
I/O	1 x Power button 1 x Reset button 2 x USB 3.0 (Front) 2 x USB 2.0 (Rear) 2 x USB 3.2 (Rear) 1 x USB Type A 1 x COM port 1 x TPM header 1 x VGA port
Power Supply Unit	800W 1+1 redundant PSU 80+ Platinum
Operating Environment	Operating temperature: 0°C – 50°C (32°F – 122°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% – 90% (non-condensing) Non-operating relative humidity: 5% – 95% (non-condensing)
Warranty	Standard 3 Years Warranty

The ServerWare® ST3E - Single Socket Scalable Xeon®

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	3U Rack Server 645mm x 483mm x 132mm
MB Size (WxL)	312mm x 257mm
Processor	5th/4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E), CPU TDP supports up to 350W TDP
Chipset	Intel® C741 Chipset
SAS Controller	LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory	Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s (1DPC) in 8 DIMM slots
Drive Bay	(16) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection (2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection (4) Internal Bays 2.5″
Onboard Storage Device	Intel® C741 controller for 10 SATA3 (6 Gbps) ports
HDD Backplane	1 x 16-port 12Gb SAS backplane expander
PCIe Expansion Slot	3 PCIe 5.0 x8, 2 PCIe 5.0 x16, 2 PCIe 5.0 x8 PCIe5.0 MCIO connector M.2 Interface: 2 PCIe 5.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-Key
PCI Interface	PCI Express* 5.0
Network Controllers	Dual LAN with 10GBase-T with Intel® X550 1x RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2600 BMC
Integrated Graphics	BMC integrated Aspeed AST2600
I/O	1 x Power button 1 x Reset button 2 x USB 3.0 (Front) 2 x USB 2.0 (Rear) 2 x USB 3.2 (Rear) 1 x USB Type A 1 x COM port 1 x TPM header 1 x VGA port
Power Supply Unit	800W 1+1 redundant PSU 80+ Platinum
Operating Environment	Operating temperature: 5°C to 35°C (41°F to 95°F) Non-operating temperature: -40°C to 65°C (-40°F to 149°F) Operating relative humidity: 50% to 85%RH Non-operating relative humidity: 20% to 90%RH
Warranty	Standard 3 Years Warranty

The ServerWare® ST3E - Dual Socket Scalable Xeon®

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	3U Rack Server 645mm x 483mm x 132mm
MB Size (WxL)	307mm x 332mm
Processor	5th/4th Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4677 (Socket E) , CPU TDP supports up to 350W TDP
Chipset	Intel® C741 Chipset
SAS Controller	LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory	Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s in 16 DIMM slots
Drive Bay	(16) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection (2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection (4) Internal Bays 2.5″
Onboard Storage Device	Intel® C741 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Intel® C741 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1
HDD Backplane	1 x 16-port 12Gb SAS backplane expander
PCIe Expansion Slot	2 PCIe 5.0 x8 4 PCIe 5.0 x16 6 NVMe ports PCIe 5.0 x4 via 3 MCIO connectors M.2 Interface: 2 PCIe 4.0 x2 M.2 Form Factor: 2280, 22110 M.2 Key: M-Key
PCI Interface	PCI Express* 5.0
Network Controllers	Dual LAN with Broadcom BCM57416 10GBase-T 1x RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2600 BMC
Integrated Graphics	BMC integrated Aspeed AST2600
I/O	1 x Power button 1 x Reset button 2 x USB 3.0 (Front) 4 x USB 3.0 (Rear) 1 x USB Type A 1 x COM port 1 x TPM header 1 x VGA port
Power Supply Unit	800W 1+1 redundant PSU 80+ Platinum
Operating Environment	Operating temperature: 10°C to 35°C (50°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 8% – 90% (non-condensing) Non-operating relative humidity: 5% – 95% (non-condensing)
Warranty	Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

The ServerWare® ST4E 4U Server System

Unlock boundless possibilities in both standard and industrial computing environments with unparalleled application flexibility.

The ServerWare® ST4E is a versatile solution catering to a range of needs, spanning from cloud storage and archival to high-performance computing, web servers, big data, video streaming, and security video systems. The SG4E HD is meticulously designed for unparalleled flexibility across different applications, whether in mainstream computing or industrial computing environments.

Experience single large-scale storage servers, ideal for scaling up and out.

The ServerWare® ST3E Server System boasts 24 HDD bays, enabling you to create vast capacities of up to 720TB of raw data space. You have the option of utilizing a Hardware RAID controller for data redundancy or a Zero RAID controller for software-defined data management.

Low Latency High IOPS Throughput

The ServerWare® ST4E Server System offers extensive storage capabilities with 24 HDD bays, allowing for significant expansion of raw data space. It provides flexibility in data management with the option of a Hardware RAID controller for redundancy or a Zero RAID controller for software-defined operations.

Eliminate data bottlenecks in sizable storage environments.

The ServerWare® ST3E boasts 12 hot-swap hard drive bays for data storage and 2 SSD bays for cache integration or operating systems. With HW RAID SAS 12G and Intel® Xeon® processors, supporting up to 2TB of DDR5 memory, dual 10Gbe, and five free PCI Express expansion slots, it offers extensive expansion capabilities within a 4U form factor.

The ServerWare® ST4E Specifications

The ServerWare® ST4E is built on the Intel® Xeon® Processor Product Family, ensuring top-tier performance and reliability. It supports either a single Intel® Xeon® E platform or dual 5th Gen Intel Xeon Scalable processors, with DDR5 memory channels per processor, high-speed QPI links, multiple PCI-E Gen5 slots, Intelligent Management (IPMI 2.0), iKVM-over-LAN, and a high-efficiency power supply.

The ServerWare® ST4E – Intel® Xeon® E platform

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	4U Rack Server 645mm x 483mm x 176mm
MB Size (WxL)	244mm x 244mm
Processor	Intel® Xeon® E-2400 Series Processor, Pentium®* Processor, Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP
Chipset	Intel® C262 chipset
SAS Controller	LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory	Up to 128GB ECC Unbuffered DIMM, DDR5-4400MHz, in 4 DIMM slots
Drive Bay	(24) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection (2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device	Intel® C262 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
HDD Backplane	1 x 24-port 12Gb SAS backplane expander
PCIe Expansion Slot	1 PCIe 5.0 x8 1 PCIe 5.0 x8 (in x16) 2 PCIe 4.0 x4 (in x8) M.2 Interface: 1 PCIe 4.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key
PCI Interface	PCI Express* 5.0
Network Controllers	Dual LAN with 1GbE with Intel® I210 1x RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2600 BMC
Integrated Graphics	BMC integrated Aspeed AST2600
I/O	1 x Power button 1 x Reset button 2 x USB 3.0 (Front) 2 x USB 2.0 (Rear) 2 x USB 3.2 (Rear) 1 x USB Type A 1 x COM port 1 x TPM header 1 x VGA port
Power Supply Unit	1200W 1+1 redundant PSU 80+ Platinum
Operating Environment	Operating temperature: 5°C to 35°C (41°F to 95°F) Non-operating temperature: -40°C to 65°C (-40°F to 149°F) Operating relative humidity: 50% to 85%RH Non-operating relative humidity: 20% to 90%RH
Warranty	Standard 3 Years Warranty

The ServerWare® ST4E - Single Socket Scalable Xeon®

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	4U Rack Server 645mm x 483mm x 176mm
MB Size (WxL)	312mm x 257mm
Processor	5th/4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E), CPU TDP supports up to 350W TDP
Chipset	Intel® C741 Chipset
SAS Controller	LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory	Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s (1DPC) in 8 DIMM slots
Drive Bay	(24) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection (2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device	Intel® C741 controller for 10 SATA3 (6 Gbps) ports
HDD Backplane	1 x 24-port 12Gb SAS backplane expander
PCIe Expansion Slot	3 PCIe 5.0 x8, 2 PCIe 5.0 x16, 2 PCIe 5.0 x8 PCIe5.0 MCIO connector M.2 Interface: 2 PCIe 5.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-Key
PCI Interface	PCI Express* 5.0
Network Controllers	Dual LAN with 10GBase-T with Intel® X550 1x RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2600 BMC
Integrated Graphics	BMC integrated Aspeed AST2600
I/O	1 x Power button 1 x Reset button 2 x USB 3.0 (Front) 2 x USB 2.0 (Rear) 2 x USB 3.2 (Rear) 1 x USB Type A 1 x COM port 1 x TPM header 1 x VGA port
Power Supply Unit	1200W 1+1 redundant PSU 80+ Platinum
Operating Environment	Operating temperature: 5°C to 35°C (41°F to 95°F) Non-operating temperature: -40°C to 65°C (-40°F to 149°F) Operating relative humidity: 50% to 85%RH Non-operating relative humidity: 20% to 90%RH
Warranty	Standard 3 Years Warranty

The ServerWare® ST4E - Dual Socket Scalable Xeon®

System Specifications

DESCRIPTION	SPECIFICATIONS
Form Factor (LxWxH)	4U Rack Server 645mm x 483mm x 176mm
MB Size (WxL)	307mm x 332mm
Processor	5th/4th Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4677 (Socket E) , CPU TDP supports up to 350W TDP
Chipset	Intel® C741 Chipset
SAS Controller	LSI SAS3508 8-Ports Internal 12GB/s SAS/SATA/NVMe PCIe 3.1 2GB IOP Raid Controller HW ROC RAID 0, 1, 10, 5, 6, 50, 60 support
Memory	Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s in 16 DIMM slots
Drive Bay	(24) Hotswap 3.5″ HDD 6G/12G Bays with RV Protection (2) Hotswap 2.5″ HDD 6G/12G Bays with RV Protection
Onboard Storage Device	Intel® C741 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Intel® C741 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1
HDD Backplane	1 x 24-port 12Gb SAS backplane expander
PCIe Expansion Slot	2 PCIe 5.0 x8 4 PCIe 5.0 x16 6 NVMe ports PCIe 5.0 x4 via 3 MCIO connectors M.2 Interface: 2 PCIe 4.0 x2 M.2 Form Factor: 2280, 22110 M.2 Key: M-Key
PCI Interface	PCI Express* 5.0
Network Controllers	Dual LAN with Broadcom BCM57416 10GBase-T 1x RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2600 BMC
Integrated Graphics	BMC integrated Aspeed AST2600
I/O	1 x Power button 1 x Reset button 2 x USB 3.0 (Front) 4 x USB 3.0 (Rear) 1 x USB Type A 1 x COM port 1 x TPM header 1 x VGA port
Power Supply Unit	1200W 1+1 redundant PSU 80+ Platinum
Operating Environment	Operating temperature: 5°C to 35°C (41°F to 95°F) Non-operating temperature: -40°C to 65°C (-40°F to 149°F) Operating relative humidity: 50% to 85%RH Non-operating relative humidity: 20% to 90%RH
Warranty	Standard 3 Years Warranty

The ServerWare® Support Plans Easy Choices.

Support Plans Easy Choices

STANDARD WARRANTY

3 Years Product Warranty
Back To Bench
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

3 YEARS ON-SITE WARRANTY

3 years On-Site NBD
3 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support

5 YEARS EXTENDED WARRANTY

5 years On-Site NBD
5 Years Product Warranty
9 x 5 Response Time
Issue Diagnostic
Break Fix Support
Zero Support Charges
Limited OS Support
RAID Support
Limited Network Support.

3 years On-Site 24 x7

Back to product menu —->

Still have questions?

Whatsapp +6016 -309 1121

for immediate answers

Error: Contact form not found.

Complete Line of Intel Platform Servers

The ServerWare® SG11 1U Server System

Transforming The World Of Server Computing with Intel® Xeon® D

Superior Compute Performance with Low Power Consumption

Superior Compute Performance with Low Power Consumption Large Capacity Memory and Storage Enablement

Superior Compute Performance with Low Power Consumption Extreme Networking Flexibility

The ServerWare® SG11 Specifications

Support Plans Easy Choices

The ServerWare® SG13 1U Server System

Industry most versatile and highly affordable 1U server system

Compact server with multiple expandability options

Dual Intel® I210AT Gigabit Ethernet

Quad M.2 unleash independent and redundant I/O for OS drive

The ServerWare® SG13 Specifications

Support Plans Easy Choices

The ServerWare® SG16 1U Server System

Rack-optimized system for expansion flexibility supporting maximum compute, memory, and I/O capacity

Powered by the latest5th Gen Intel® Xeon® Scalable Processors

Boost IOPS with high-capacity memory, cache, and storage in 1U.

Increased performance or data redundancy with dual M.2 PCI 5.0 4x Lane SSDs in RAID mode

The ServerWare® SG16 Specifications

Support Plans Easy Choices

The ServerWare® SG17S 1U Server System

A rack-optimized system featuring a 1-socket spread-core design offers expansion flexibility, supporting maximum compute, memory, and storage I/O capacity.

Broad Application Platform that is both Powerful and Affordable

Mainstream Application Optimized

Innovative and designed for data centers

The ServerWare® SG17S Specifications

System Specifications

Support Plans Easy Choices

The ServerWare® SG19 1U Server System

Flexible application usage mainstay in computing or Industrial Computing application.

Single large scale storage servers for scaling up and scaling out

Low Latency High IOPS Throughput

Eliminate data bottlenecks in sizable storage environments.

The ServerWare® SG19 Specifications

System Specifications

Support Plans Easy Choices

The ServerWare® ST2A Server System

Versatile utilization extends across both conventional computing and industrial computing applications.

Single, large-scale storage servers designed for both scaling up and scaling out.

Low Latency High IOPS Throughput

Eliminate data bottlenecks in sizable storage environments.

The ServerWare® ST2A Specifications

System Specifications

System Specifications

System Specifications

Support Plans Easy Choices

The ServerWare® ST2E 2U Server System

Redefining the Challenges of Server Computing: Striking the Optimal Balance Between Compute and Storage Performance.

Powered by the latest 5th Gen Intel Xeon Scalable processors

Enhanced performance or data redundancy achieved through dual M.2 SSDs in RAID mode.

Address data bottlenecks within expansive storage environments.

The ServerWare® SG2E Specifications

System Specifications

System Specifications

System Specifications

Support Plans Easy Choices

The ServerWare® ST3E 3U Server System

A quintessential mainstream storage server tailored to fulfill the demands of cloud storage.

Large-scale storage servers designed for both scaling up and scaling out.

Enhanced data redundancy can be achieved using dual M.2 SSDs configured in RAID mode.

Address data bottlenecks within expansive storage environments.

The ServerWare® ST3E Specifications

System Specifications

System Specifications

System Specifications

Support Plans Easy Choices

The ServerWare® ST4E 4U Server System

Unlock boundless possibilities in both standard and industrial computing environments with unparalleled application flexibility.

Experience single large-scale storage servers, ideal for scaling up and out.

Low Latency High IOPS Throughput

Eliminate data bottlenecks in sizable storage environments.

The ServerWare® ST4E Specifications

System Specifications

System Specifications

System Specifications

Support Plans Easy Choices

Still have questions?

Whatsapp +6016 -309 1121

Dual Intel^® I210AT Gigabit Ethernet

Powered by the latest 5^th Gen Intel Xeon Scalable processors
